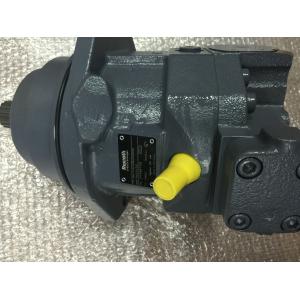

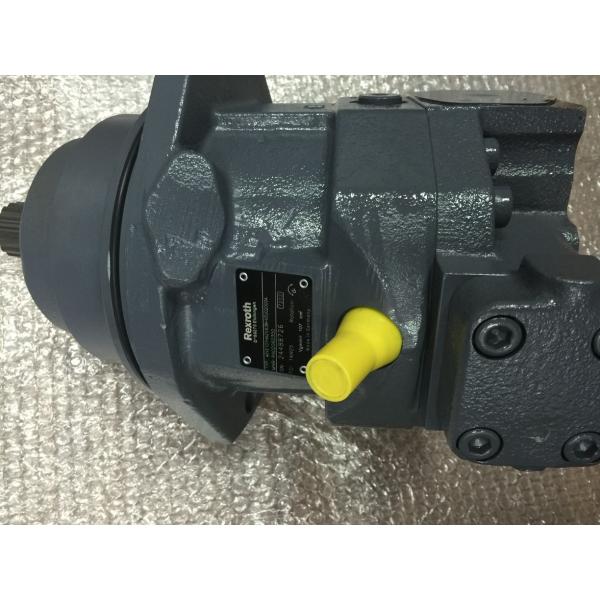

A6VE107HA2T/63W-VZU02000A R902060350 A6VE Variable Plug-In Motor

Name: A6VE107HA2T63WVZU02000A R902060350 A6VE Variable PlugIn Motor
Brand: Rexroth
Price: 1 USD

Ask Lasest Price
Brand Name :	Rexroth
Model Number :	A6VE107HA2T/63W-VZU02000A R902060350
Price :	On Request
Payment Terms :	T/T, Western Union
Supply Ability :	1000/Month
Delivery Time :	7-10days

Add to Cart

Product Details
Company Profile

A6VE107HA2T/63W-VZU02000A R902060350 A6VE Variable Plug-In Motor

Axial piston variable motor A6VE series 6X

High pressure motor for integration in mechanical gearboxes
Series 65: size 55 … 200
series 63: size 28, 250
Nominal pressure up to 400 bar
Maximum pressure up to 450 bar
Open and closed circuits

Features
Space-saving construction due to recessed mounting flange
Easy to install, simply slide into the mechanical gearbox
Wide control range (can be swiveled to zero)
Approved for very high speeds
High torque
Optional with attached flushing and boost-pressure valve
Optional with integrated or attached counterbalance valve
Bent-axis design

Table of values

Size				28	55	80	107	160	200	250
Series				63	65	65	65	65	65	63
Displacement		V_{g max}	cm³	28.1	54.8	80	107	160	200	250
		V_{g x}	cm³	18	35	51	68	61	76	188
		V_{g min}	cm³	0	0	0	0	0	0	0
Nominal pressure		p_nom	bar	400	400	400	400	400	400	350
Maximum pressure		p_max	bar	450	450	450	450	450	450	400
Maximum speed	at V_{g max} ¹⁾	n_nom	rpm	5550	4450	3900	3550	3100	2900	2700
	at V_g< V_{g x}	n_max	rpm	8750	7000	6150	5600	4900	4600	3300
	at V_{g min}	n_{max 0}	rpm	10450	8350	7350	6300	5500	5100	3300
Inlet flow ²⁾	at V_{g max} and n_nom	q_{V nom}	l/min	156	244	312	380	496	580	675
Torque	at V_{g max} and p_nom	M	Nm	179	349	509	681	1019	1273	1391
Weight (approx.)		m	kg	16	28	36	46	62	78	110

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Axial piston variable motor A6VE107 series 6X on Sale, Short lead time, Best price!!!

R902004281	A6VE107HA1T/63W-VZL020A-S
R902004497	A6VE107HA2T/63W-VZL02000A-Y
R902006671	A6VE107EP2/63W-VZU020B
R902009562	A6VE107EP2/63W-VAL020DB-S
R902009620	A6VE107HA1/63W-VZU020A
R902009622	A6VE107EP2/63W-VAL020DB-SK
R902009644	A6VE107EP2/63W-VZL020DB-SK
R902009646	A6VE107EP2/63W-VZL020DB-S
R902009728	A6VE107EP2/63W-VZL020DB-SK
R902009730	A6VE107EP2/63W-VZL020DB-S
R902009759	A6VE107HA2T/63W-VZL020A
R902009761	A6VE107HA2T/63W-VZL020DA-S
R902009788	A6VE107EZ4/63W-VZU027DB-S
R902009877	A6VE107EP2D/63W-VZL020B
R902009879	A6VE107HA1/63W-VZL027A
R902009881	A6VE107HD1/63W-VZL020DB-S
R902014076	A6VE107HA1T/63W-VZL020DA-S
R902014114	A6VE107HZ3/63W-VZU22XB-S
R902014137	A6VE107HA2T/63W-VZU027A
R902014159	A6VE107HZ3/63W-VZL027B-S
R902014250	A6VE107DA1/63W-VZU020B
R902014478	A6VE107HZ3/63W-VZU010B
R902016519	A6VE107HZ3/63W-VZU020B
R902016585	A6VE107EP2/63W-VZU027IHB-S
R902016679	A6VE107EP2/63W-VZL027DB-SK
R902016681	A6VE107EP2/63W-VZL027B
R902016716	A6VE107HA2TX/63W-VZL020DA-S
R902018035	A6VE107HA2/63W-VZU020A-S
R902018037	A6VE107HA3T/63W-VZL22XB-S
R902018062	A6VE107HA1T/63W-VZL027A
R902021593	A6VE107HD1X/63W-VZL027B-S
R902021810	A6VE107HZ3/63W-VZL22XB-S
R902021854	A6VE107EP2D/63W-VZU370DB-S
R902024573	A6VE107HZ1/63W-VZL020B
R902024724	A6VE107HZ3/63W-VZL22XB-S
R902024734	A6VE107HA1T/63W-VZL520A-S
R902024770	A6VE107HZ3/63W-VZU01XB-S
R902024829	A6VE107HA1T/63W-VZL020A
R902024833	A6VE107HA1T/63W-VZL527A-S
R902024869	A6VE107HA3T/63W-VZU22XB-S
R902027040	A6VE107HA3T/63W-VZL22XB-S
R902027135	A6VE107HD2D/63W-VZL020B
R902027158	A6VE107DA1/63W-VZL020B
R902027223	A6VE107HD1/63W-VZU380B-S
R902027270	A6VE107DA1/63W-VZL010B
R902027303	A6VE107HZ1/63W-VZU370B-S
R902027423	A6VE107EZ4/63W-VZL020B
R902027460	A6VE107HA1/63W-VZL370A-S
R902028550	A6VE107HA1T/63W-VZL370A-S
R902028861	A6VE107HA1/63W-VZL370A-SK
R902030686	A6VE107HZ3/63W-VZL22XB-S
R902030911	A6VE107HA3T/63W-VZL22XB-S
R902030950	A6VE107HA3T/63W-VZL22XB-S
R902031572	A6VE107EZ4/63W-VZL02XB-S
R902031809	A6VE107HD1/63W-VZL010B
R902031859	A6VE107HZ3/63W-VZU222B-S
R902031922	A6VE107HD2D/63W-VZU020B
R902033060	A6VE107HD1D/63W-VZU370B-S
R902033063	A6VE107HD1D/63W-VZU370B-SK
R902033216	A6VE107EP2/63W-VZU017B
R902033269	A6VE107EP2/63W-VZL027DA-S
R902033272	A6VE107EP2/63W-VZL027DA-SK
R902033327	A6VE107HA3T/63W-VZL22XB-S
R902033370	A6VE107HZ3/63W-VZL221B
R902033377	A6VE107EP2/63W-VZL017DA-SK
R902033378	A6VE107EP2/63W-VZL017DA-S
R902033411	A6VE107HZ3/63W-VZL01XB-S
R902033420	A6VE107HA3T/63W-VZL22XB-S
R902035160	A6VE107HZ3/63W-VZL22XB-S
R902035318	A6VE107EZ3/63W-VZL027B
R902035384	A6VE107EP7/63W-VZL020DB-S
R902035401	A6VE107HZ3/63W-VZU222B-S
R902035449	A6VE107HD2/63W-VZL027B
R902035454	A6VE107EZ4/63W-VZU027DB-SK
R902036500	A6VE107HA3T/63W-VZL22XB-S
R902036515	A6VE107HA1/63W-VZL020A
R902036848	A6VE107HZ3/63W-VPL010B-S
R902036894	A6VE107EP2/63W-VZU0X7DB-K
R902036896	A6VE107EP2/63W-VZU0X7DB-S
R902038535	A6VE107HZ3/63W-VZL22XB-S
R902038556	A6VE107EP2/63W-VZL027DB-SK
R902038657	A6VE107HD2D/63W-VAL027DB-S
R902038777	A6VE107EP7/63W-VZL020DB-SK
R902038799	A6VE107EZ4/63W-VZU027B
R902038825	A6VE107HA3T/63W-VZL22XB-S
R902038827	A6VE107HA3T/63W-VZL22XB-S
R902038923	A6VE107HZ3/63W-VZU222B-S
R902038976	A6VE107HA1T/63W-VZU380A-S
R902040042	A6VE107HA3T/63W-VZL22XB-S
R902040307	A6VE107EP1/63W-VZU020DB-SK
R902040309	A6VE107EP1/63W-VZU020DB-S
R902040333	A6VE107HA3T/63W-VZL22XB-S
R902043960	A6VE107HA3T/63W-VZU222B-S
R902047046	A6VE107EZ4/63W-VZL027B
R902047069	A6VE107HA3T/63W-VZL22100B-S
R902047070	A6VE107HA3T/63W-VZL22XB-S
R902049166	A6VE107HA1/63W-VZL37800A-Y
R902049169	A6VE107HA1T/63W-VZL02XA-S
R902049271	A6VE107EP1/63W-VZU027DB-S
R902049350	A6VE107HZ1/63W-VZU020B
R902050611	A6VE107EP1/63W-VZU020DA-SK
R902050612	A6VE107EP1/63W-VZU020A
R902050643	A6VE107EP2/63W-VZU0X7DWB-SK
R902050770	A6VE107EP2/63W-VZU0X7DWB-S
R902050771	A6VE107EP1/63W-VZU020DA-S
R902052167	A6VE107HD1/63W-VZU027DB-S
R902052339	A6VE107EP2D/63W-VZL027A
R902054002	A6VE107HA3T/63W-VZL22XB-S
R902054925	A6VE107EZ4/63W-VZU020B
R902057214	A6VE107EP2/63W-VZL027DHB-S
R902057379	A6VE107EP2/63W-VZU027DHB-S
R902057381	A6VE107EP2/63W-VZL020DHB-S
R902057383	A6VE107EP1/63W-VZU027DHB-S
R902057385	A6VE107EP1/63W-VZL020HB
R902057387	A6VE107EP2/63W-VZL020HB
R902057388	A6VE107EP2/63W-VZL027HB
R902057390	A6VE107EP1/63W-VAL020HB
R902057392	A6VE107EP2/63W-VAL020HB
R902057393	A6VE107EP1/63W-VZU020HA
R902057395	A6VE107EP2/63W-VZU020HB
R902057396	A6VE107EP2/63W-VZU017HB
R902057398	A6VE107EP2/63W-VZU027HB
R902060085	A6VE107EP1D/63W-VZL027DHB-S
R902060238	A6VE107EP2/63W-VZU017DTA-SK
R902060240	A6VE107EP2/63W-VZU017DTA-S
R902060308	A6VE107DA1/63W-VZL027B
R902060349	A6VE107HA2T/63W-VZU020DA-S
R902060350	A6VE107HA2T/63W-VZU02000A
R902060384	A6VE107HA3T/63W-VZU222B-S
R902060388	A6VE107EP2/63W-VZL020DHB-SK
R902063713	A6VE107EP1/63W-VZU027FHB
R902063749	A6VE107HZ3/63W-VZL027FB-SK
R902063751	A6VE107HZ3/63W-VZL027FB-S
R902063868	A6VE107HA2/63W-VZU020A
R902065534	A6VE107HZ3/63W-XZL020B
R902065575	A6VE107EP2/63W-VZL020DHA-SK
R902065587	A6VE107EP2/63W-VZL020DHA-S
R902065702	A6VE107EP1/63W-VZU027FHA-SK
R902065703	A6VE107EP1/63W-VZU027FHA-S
R902065780	A6VE107EP2/63W-VZL017FTA-SK
R902065782	A6VE107EP2/63W-VZL017FTA-S
R902067681	A6VE107HA2T/63W-VZU020DA-SK
R902067845	A6VE107EP1/63W-VZU027FHA-SK
R902067979	A6VE107HA2R1/63W-VZL027DHA-SK
R902067980	A6VE107HA2R1/63W-VZL027DHA-S
R902068516	A6VE107HA1T/63W-VZU027A
R902068716	A6VE107HZ3/63W-VZU017B
R902068723	A6VE107HZ3/63W-VZL2XXB-S
R902068745	A6VE107EP2/63W-VZL020FPB-SK
R902068746	A6VE107EP2/63W-VZL020FPB-S
R902068774	A6VE107HA2T/63W-VZU027A-S
R902068930	A6VE107EZ3/63W-VZU01XDB-S
R902070638	A6VE107HA3T/63W-VZL22100B-S
R902070639	A6VE107HA3T/63W-VZL22100B-S
R902070647	A6VE107EZ4/63W-VZU01XDB-S
R902070717	A6VE107EP2/63W-VZL017FA-SK
R902070719	A6VE107EP2/63W-VZL017FA-S
R902070796	A6VE107EP1/63W-VZL520FTB-S
R902070930	A6VE107EP2D/63W-VZU020HB
R902072600	A6VE107EP2/63W-VZL027DTB-S
R902072631	A6VE107EZ4/63W-VZL027DHB-SK
R902072633	A6VE107EZ4/63W-VZL027DHB-S
R902072668	A6VE107HA2T/63W-VZU027DA-SK
R902072670	A6VE107HA2T/63W-VZU027DA-S
R902072671	A6VE107HD1D/63W-VZL37800B-Y
R902072673	A6VE107HD1D/63W-VZL370B-S
R902073635	A6VE107EP1/63W-VZU520FTA-SK
R902073637	A6VE107EP1/63W-VZU520FTA-S
R902073651	A6VE107HA3T/63W-VZL22XB-S
R902073652	A6VE107HA3T/63W-VZL22XB-S
R902073805	A6VE107HZ3/63W-VZL027DB-S
R902073814	A6VE107EP2/63W-VZL027FHB-SK
R902073816	A6VE107EP2/63W-VZL027FHB-S
R902075003	A6VE107EP2/63W-VZU027DHA-S
R902075242	A6VE107EP2D/63W-VZU027FHB
R902075495	A6VE107HA1T/63W-VZU020A-S
R902077008	A6VE107EP2/63W-VZL020DHA-SK
R902077010	A6VE107EP2/63W-VZL020DHA-S
R902077038	A6VE107HZ3/63W-VZU222B-S
R902077157	A6VE107HA3T/63W-VZL22100B-S
R902077159	A6VE107HA3T/63W-VZL221B-S
R902077189	A6VE107EP2/63W-VZU017TB
R902077207	A6VE107EZ2/63W-VZL370HB-SK
R902077209	A6VE107EZ2/63W-VZL370HB-S
R902077451	A6VE107EP2D/63W-VZU370DHB-SK
R902077453	A6VE107EP2D/63W-VZU370DHB-S
R902077493	A6VE107HD1D/63W-VZL380B-SK
R902077495	A6VE107HD1D/63W-VZL380B-S
R902078566	A6VE107EP2/63W-VZL020FHB
R902078568	A6VE107HA2T/63W-VZU027FA-SK
R902078570	A6VE107HA2T/63W-VZU027FA-S
R902078846	A6VE107EP2/63W-VZL020HPB
R902080570	A6VE107EZ4/63W-VZU027FHB-SK
R902080572	A6VE107EZ4/63W-VZU027FHB-S
R902080627	A6VE107HD1/63W-VZL027FB-S
R902080658	A6VE107EP1/63W-VZU020DHA-SK
R902080664	A6VE107EP1/63W-VZU020DHA-S
R902080856	A6VE107HZ3/63W-VAL517FB-SUG
R902080945	A6VE107EP2D/63W-VZU027FHB
R902082139	A6VE107EZ4/63W-VZL027FHB-SK
R902082141	A6VE107EZ4/63W-VZL027FHB-S
R902082381	A6VE107EP2/63W-VZL027FPA-SK
R902082383	A6VE107EP2/63W-VZL027FPA-S
R902084245	A6VE107EP2/63W-VZU027DTA-S
R902096749	A6VE107DA1/63W-VZL027FB-SK
R902096751	A6VE107DA1/63W-VZL027FB-S
R902101301	A6VE107EP2D/63W-VZU010HB
R902102502	A6VE107EZ4/63W-VAL027TB
R902117956	A6VE107DA1/63W-VZL020F0B
R902117958	A6VE107DA1/63W-VZL020FB-S
R902121635	A6VE107EP2/63W-VZL027HPB-S
R902121636	A6VE107EP2/63W-VZL027FPB-S
R902121656	A6VE107EP1/63W-VZU017HPA-S
R902121657	A6VE107EP1/63W-VZU017FPA-S
R902121671	A6VE107EP1/63W-VZU027FPB-ESK
R902121673	A6VE107EP1/63W-VZU027FPB-S
R902150237	A6VE107DA1/63W-VZL01000B
R902150254	A6VE107DA1/63W-VZL02000B
R902153891	A6VE107HA2/63W-VAL017FA-SK
R902155028	A6VE107DA1/63W-VZL01000B
R902155099	A6VE107DA1/63W-VZL027F0B
R902165256	A6VE107HZ3/63W-VZL22200B
R902165258	A6VE107HZ3/63W-VZL22200B-Y
R902165260	A6VE107HZ3/63W-VZL22200B-S
R902165266	A6VE107HD1D/63W-VZL37800B
R902165271	A6VE107EP2D/63W-VZU0200PB
R902165276	A6VE107EP2D/63W-VZU020PB-S
R902165278	A6VE107HZ3/63W-VZL22200B-S
R902165289	A6VE107HA2T/63W-VZU027H0A
R902165292	A6VE107HA2T/63W-VZU0270HA
R902165296	A6VE107EP2D/63W-VZU010PB
R902211872	A6VE107DA1/63W-VZL02700B
R902217570	A6VE107DA1/63W-VZL01000B
R902222350	A6VE107DA1/63W-VZL01000B
R902233839	A6VE107DA1/63W-VZL01000B
R902241969	A6VE107HA1T/63W-VZU02700A
R902241980	A6VE107HZ3/63W-VZL221F0B-S
R987212229	A6VE107EP2/63W-VZL020FPB
R992001712	A6VE107EP2/63W-VZL017FA-SK

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Saar HK Electronic Limited
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

A6VE107HA2T/63W-VZU02000A R902060350 A6VE Variable Plug-In Motor

A6VE107HA2T/63W-VZU02000A R902060350 A6VE Variable Plug-In Motor

A6VE107HA2T/63W-VZU02000A R902060350 A6VE Variable Plug-In Motor

Plug-In Rexroth Axial Piston Pump

Variable Rexroth Pump

Rexroth Hydraulic Plug Motor

A6VE107HA2T/63W-VZU02000A R902060350 A6VE Variable Plug-In Motor

You May Like

Bent Axis Commercial Hydraulic Pumps / Fixed Piston Motor A2FM23 A2FM28 A2FM32

Swash Plate Design Rexroth Hydraulic Pump A4FO16 Series Low Operating Noise

High Power Rexroth Hydraulic Pump , A2FM56 A2FM63 Series Fixed Axial Piston Motor

Axial Piston / Hydraulic Pump Motor High Power Density A2FM45 Series

High Efficiency Rexroth Hydraulic Pump , Axial Fixed Piston Motor A2FM80 A2FM90


*From:	Your email address is incorrect!
*To:	Saar HK Electronic Limited
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!
