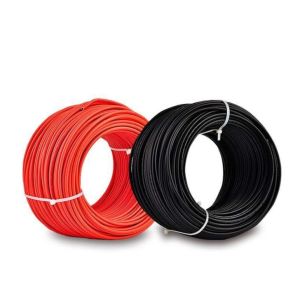

    450/750V Grounding Solar PV Cable 6mm Waterproof Multipurpose

    Ask Lasest Price
    Brand Name : SolarverTech
    Model Number : Photovoltaic Grounding cable WDZ-RY
    Certification : CE ROHS E8
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 rolls per month
    Delivery Time : <=10pieces,7days <=200pieces,20days
    • Product Details
    • Company Profile

    450/750V Grounding Solar PV Cable 6mm Waterproof Multipurpose

    DC PV Solar Wire 3mm to 6.3mm Photovoltaic Wire Power Solar Panel Cables
    Quick Details
    Place of Origin:
    Zhejiang, China
    Brand Name:
    solarvertech or netaural
    Model Number:
    Photovoltaic Grounding cable WDZ-RY
    Insulation Material:
    XLPE
    Type:
    High Voltage
    Application:
    Power Station
    Conductor Material:
    Copper
    Jacket:
    XLPE
    Supply Ability
    Supply Ability
    10000 Roll/Rolls per Day
    Packaging & Delivery
    Packaging Details
    carton then pallet
    Port
    ningbo / shanghai

    Technical Data of PV Cable:



    Material code

    Cross section
    (mm')

    Conductor
    construction
    nlmm)

    Cable OD.
    (mm)

    Conductor Max.
    ResistanceAT 20℃
    (/km)

    current carrying
    capacity AT60t
    A

    Reference welght
    (kgkm)
    RYJ150010011.530/0.25313.73021.26
    RYJ250010012.545/0.253.78.214132.12
    RYJ40001001456/0.284.25.095545.61
    RYJ60001001678/0.2954.83.397065.39
    RYJA10010011077/O.46.31.9598116.09


    Electrical performance


    Rated voltage:UO/U=450/750V

    Test voltage:AC 2.5KV,5Min.


    Thermal performance


    Ambient temperature:-40℃~+90℃

    Max.Temperature at conductor:120℃

    Max. short circuit temperature:250℃,5s

    Material properties/Standard


    Ageing characteristic:GB/T2951.2Flammability: GB/T18380.1
    Applied standard:JB/T10491
