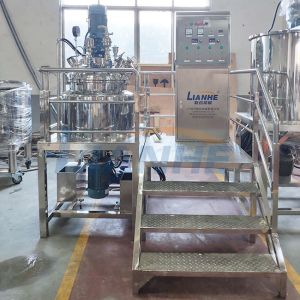

100L Fixed Cover Vacuum Emulsifying Mixer Bottom Homogenizer Mixer
Product Description:
The product is mainly applied in such industries as daily chemical
care products, bio pharmaceutical industry, food industry,paint and
ink, nanometer materials, petrochemical industry, printing and
dyeing auxiliaries, pulp & paper, pesticide, fertilier, plastic &
rubber, electrics and electronics, fine chemical industry, etc. The
emulsifying effect is more prominent for materialsof high base
viscosity and high solid content.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system |
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 |
| The parameters for reference only, all the machines can be
customized accordingly. |
Product Application:
Product Specifications:
• Capacity: 5L, 10L, 15L, 25L, 30L, 50L, 100L, 150L, 200L, 250L,
350L, 500L, 650L, 1000L, 1500L, 2000L,3000L,5000L
• Agitator type: homogenizer (high-speed agitator), sweep wall
agitator (low-speed agitator)
• Certificate: CE
• one year warranty
• Supply capacity: 20 units/month
Product Details:
Main Feactures:
- SIEMENS frequency converter for speed adjustment of 0-3000 rpm,
which can meet the production of different technology requirements.
- Burgmann mechanical sealing for Vacuum Mixing Making Machine,
good sealing effect, and long working life. Material contact parts
all use SUS316L stainless steel.
- The vacuum defoaming can make the materials meet the requirement
of being aseptic. The vacuum material sucking adopted can avoid
dust.
- PTFE scraping board cater to the body of blending groove and
scrape out viscosity material on the boiler wall.
- All pipelines and parameter are controlled automatically if
needed. Electronics are imported from foreign country, like Siemens
,Schneider, ABB etc.
- Emulsifying tank is with CIP cleaning system, it makes the
cleaning easier and more effective.
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
