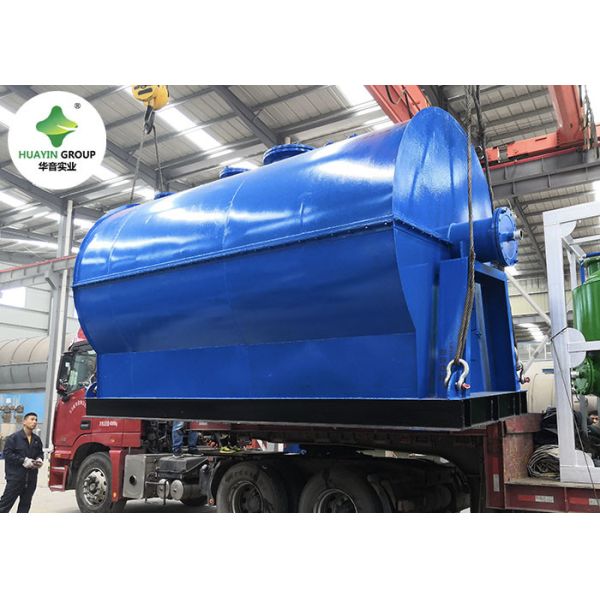

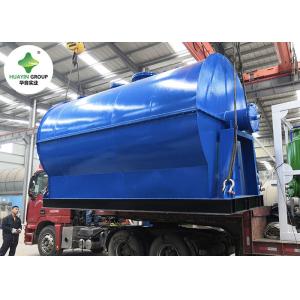

Huain 1000kg Plastic Pyrolysis Plastic To Pyrolysis Fuel Plant In
South Africa
Product description
Nowadays, with human exploitation and environmental degradation,
natural energy especially oil energy is becoming less and less, on
the contrary, municipal solid wastes are becoming more and more. As
the waste plastic pyrolysis plant has the advantages of
environmentally friendly, energy-saving, high safety level, and
large profit, it is widely used for the treatment of waste rubber
and plastic products.
Specification
| Model | Reactor size | Capacity | Power | Landing area(m) |
| HY-10kg | HY1880*800 | 10kg/batch | 250W | 1*4 |
| HY-1T | HY1500*3000 | 1 T/batch | 13.5KW | 8*20 |
| HY-5T | HY2200*5500 | 5 T/batch | 29.4KW | 10*35 |
| HY-7T | HY2200*7500 | 7 T/batch | 29.4KW | 10*35 |
| HY-8T | HY2600*6600 | 8 T/batch | 29.4KW | 12*35 |
| HY-9T | HY2800*6000 | 9 T/batch | 29.4KW | 12*35 |
| HY-10T | HY2800*6600 | 10 T/batch | 32KW | 15*35 |
| HY-15T | HY2800*8000 | 15 T/batch | 34KW | 15*35 |
Output product and usage
Fuel Oil (50%-75%)
1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color and smell removal system, the final oil can be used in diesel
engines like trucks, tractors, etc.
Carbon Black (30%-35%)
Slag for construction.
Flammable Gas (8%-10%)
1. Recycled into the furnace to heat reactor instead of
coal/wood/oil/natural gas.
2. Storage the extra gas to restart the next batch.
Main advantages
1. High efficiency. The feeding port of the pyrolysis reactor is
1400mm, so the waste material doesn’t need pretreatment, it can be
put into the pyrolysis reactor directly with the auto feeder
machine.
2. High stability. The rollers are engineered underfeeding port and
oil outlet port which are external from the heating area to bring
perfect rotating balance and longer service life.
3. Energy saving: Non-condensable gas will go back to the heating
system for second burning as heating material, saving your heating
fuel.
4. High oil yield: Larger condensation area to ensure sufficient
condensation of oil gas into liquid oil.
5. Eco-friendly: The stainless steel deduster is filled with
ceramic filters inside, which brings it strong dust adsorption
capacity and a good dedusting effect.
6. High safety level: Equipped with Alarm, auto pressure releasing
device, anti backfire device, vacuum pump to ensure the machine
working smoothly.
Our services
1. One-stop solution. We have more than 20 years of rich experience
in manufacturing waste pyrolysis plants. We pay more attention to
customer experience and customer satisfaction. As long as you need
it, we are able to provide you with a better quality complete
production line.
2. We have our own factory and trading company, no middlemen, more
cost-effective, and it is more convenient for you to replace
related parts, as long as there is a problem, we can provide a
solution immediately, product quality is guaranteed.
3. We promise that our plants are efficient and have a long service
life to ensure that you can quickly produce in batches.
4. Delivery time is 15-25 days.
5. We can send engineers on-site to guide installation and train
your workers.
6. One-year warranty, lifelong maintenance of the equipment,
providing professional use guidance services.
