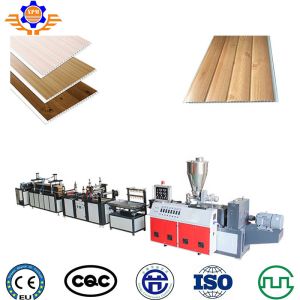

Double Screw PVC Ceiling Extrusion Line Plastic Profile Pannel
Ceiling Extrusion Machine
Quick details:
1. WPC profile production line can produce all kinds of profiles,
for example, window, door and door frame, pallet, cladding of
outdoor wall, faciliry of ourside park, floor etc. Output profile
is Wood Plastic Composite(WPC) or Plastic UPVC.
2. PVC profile production machine is mainly used for PE / PVC door
and window profiles, wide door panels, window panels, threaded
porous pipes (four holes, six holes, seven holes, nine holes,
etc.). For different sections and dies, different single and double
screw extruders are used.
Description of plastic profile machine:
1.The capacity of the profile can be selected from 50-800kgs /
hour. Hauling off machine application of our company's unique
lifting technology.
2.It has the advantages of stable operation, good reliability and
large pulling force. The vacuum setting adopts a special enlarged
eddy current cooling system, which is conducive to cooling and
calibration to meet the needs of high-speed extrusion.
3.The movement speed of the cutting machine is synchronized with
the wire drawing speed. 4.All actions are controlled by imported
PLC, reasonable design, stable operation, automatic cutting length.
Technical Parameter:
| Width()mm | Capacity (Kg/h) | Extruder power(kw) | Line Length |
| 200 | 80-100 | 18.5 | 10-16m |
| 250 | 100-180 | 22-30 | 12-20m |
| 300 | 150-200 | 37 | 15-25m |
| 400 | 300-400 | 55-75 | 15-30m |
