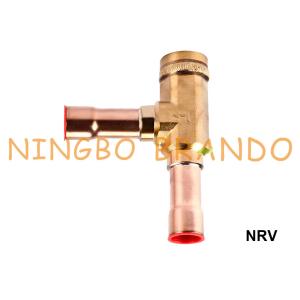

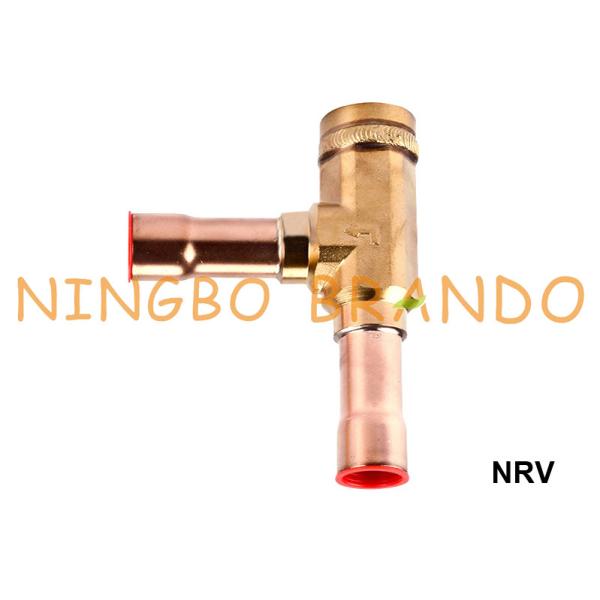

NRV NRVH Danfoss Type Refrigeration Check Valve 7/8'' 1 1/8'' 1 3/8'' 1 5/8''

Name: NRV NRVH Danfoss Type Refrigeration Check Valve 78 1 18 1 38 1 58
Brand: BRANDO
Price: 1 USD

Ask Lasest Price
Brand Name :	BRANDO
Model Number :	NRV, NRVH
Certification :	CE, ISO
Price :	Negotiation
Payment Terms :	L/C, T/T, Western Union, Paypal
Supply Ability :	200000 pcs per month
Delivery Time :	4 to 7 working days

Add to Cart

Product Details
Company Profile

NRV NRVH Danfoss Type Refrigeration Check Valve 7/8'' 1 1/8'' 1 3/8'' 1 5/8''

NRV NRVH Danfoss Type Refrigeration Check Valve 7/8'' 1 1/8'' 1 3/8'' 1 5/8''

NRV and NRVH refrigeration check valves can be used in liquid, suction and hot gas lines in refrigeration and air conditioning plant with HCFC. HFC and HC flammable refrigerants. The valves ensure the correct flow direction and prevent back-condensation from a warm part of the system to the cold evaporator. A built-in damping piston makes the valves suitable for installation in lines where pulsation can occur. e. g. in the discharge line from the compressor.

Technical Data of NRV, NRVH Angleway Solder Check Valve:

Model	Connection Type	Connection Size		Pressure drop across valve		Kv value	Cv value	Code No
Model	Connection Type	inch	mm	bar	psi	m³/h	gal/min	Code No
NRV 22s	Angle-way, Solder	7/8''	22	0.04	0.58	8.5	9.83	020-1020
NRVH 22s		7/8''	22	0.3	4.35	8.5	9.83	020-1032
NRV 22s		1 1/8''	-	0.04	0.58	8.5	9.83	020-1060
NRV 22s			28	0.04	0.58	8.5	9.83	020-1055
NRVH 22s		1 1/8''	-	0.3	4.35	8.5	9.83	020-1072
NRVH 22s			28	0.3	4.35	8.5	9.83	020-1067
NRV 28s		1 1/8''	-	0.04	0.58	16.5	19.07	020-1021
NRV 28s			28	0.04	0.58	16.5	19.07	020-1025
NRVH 28s		1 1/8''	-	0.3	4.35	16.5	19.07	020-1029
NRVH 28s			28	0.3	4.35	16.5	19.07	020-1033
NRV 28s		1 3/8''	35	0.04	0.58	16.5	19.07	020-1056
NRVH 28s		1 3/8''	35	0.3	4.35	16.5	19.07	020-1068
NRV 35s		1 3/8''	35	0.04	0.58	29	33.52	020-1026
NRVH 35s		1 3/8''	35	0.3	4.35	29	33.52	020-1034
NRV 35s		1 5/8''	-	0.04	0.58	29	33.52	020-1061
NRV 35s			42	0.04	0.58	29	33.52	020-1027
NRVH 35s		1 5/8''	-	0.3	4.35	29	33.52	020-1073
NRVH 35s			42	0.3	4.35	29	33.52	020-1035

Main Dimension of NRV, NRVH Angleway Solder Check Valve:

Model		Connection Size		H1	H2	L1	L2	φD
Model		Inch	mm	mm	mm	mm	mm	mm
NRV 22s	NRVH 22s	7/8''	22	94	48	17	87	37
NRV 22s	NRVH 22s	1 1/8''	28	94	48	22	87	37
NRV 28s	NRVH 28s	1 1/8''	28	141	67	20	123	49
NRV 28s	NRVH 28s	1 3/8''	35	141	67	25	123	49
NRV 35s	NRVH 35s	1 3/8''	35	141	67	25	123	49
NRV 35s	NRVH 35s	1 5/8''	42	141	67	29	123	49
