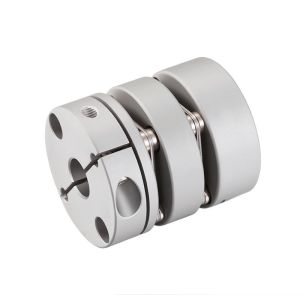

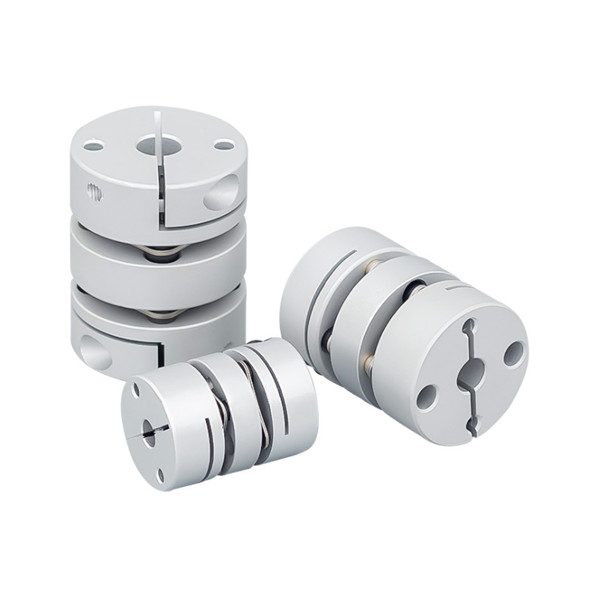

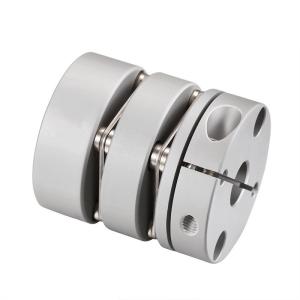

    Double Split Metal Shaft Coupling Clamp Diaphragm 10mm 20mm 25mm

    GL Aluminum Alloy Double Diaphragm Clamping Coupling

    Products Features

    Diaphragm coupling has 7 structural types, the smallest coupling transmission torque range starts from 10Nm, and the largest coupling transmission torque range can reach 8100000Nm, because the diaphragm has 6 angles, 8 angles or The shape of more or 10 angles, so the torque transmission is very uniform, the applicable ambient temperature can be from -20 ℃ to at least +280 ℃, and it is suitable for using special materials.

    > High torque rigidity, can accurately control the rotation of the shaft, can carry out high-precision control
    > Designed for servo and stepping motor
    > No gap between the shaft and sleeve connection, general for positive and negative rotation
    > Low inertia, suitable for high speed operation
    > The diaphragm is made of spring steel with excellent fatigue resistance
    > Fastening method of clamping screw

    Products Parameters

    model parameter common bore diameter d1,d2 ΦD L LF LP d3 S F M tightening screw torque
    (N.M)
    GL-19X27 3,4,5,6,6.35,7,8 19 27 9.1 5.2 Φ9 1.8 3.3 M2.5 1
    GL-26X35 5,6,6.35,7,8,9,9.525,10,11,12,14 26 35 11.65 6.5 Φ12.5 2.6 3.9 M3 1.5
    GL-32X41 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15, 32 45 12.25 9.5 Φ15 3.5 3.85 M3 1.5
    GL-34X45 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,16 34 45 14.25 9.5 Φ16 4.5 4.85 M4 2.5
    GL-39X50 8,9,9.525,10,11,12,12.7,14,15,16,17,18,19 39 50 14.9 11.2 Φ9.3 4.5 5 M4 2.5
    GL-44X50 8,9,9.525,10,11,12,12.7,14,15,16,17,18,19,20,22 44 50 14.9 11.2 Φ2.5 4.5 5 M4 2.5
    GL-50X63

    8,9,9.525,10,11,12,12.7,14,15,16,17,18,19,20

    ,22,24,25

    		 50 63 20.6 12.5 Φ23 4.8 6 M5 7
    GL-56X64 10,12,14,15,16,17,18,19,20,22,24,25,28,30,32 56 64 19.75 13.5 Φ2.5 5.5 6.4 M5 7
    GL-68X75 12,14,15,16,17,18,19,20,22,24,25,28,30,32,35,38 68 75 23.35 15.7 Φ38.3 6.3 7.7 M6 12
    GL-82X98 17,18,19,20,22,24,25,28,30,32,35,38,40,42 82 98 30 22 Φ45.5 8 9.7 M8 20

    model parameter Rated torque
    (N.M)*    		 allowable eccentricity
    (mm)*    		 allowable deflection angle
    (°)*    		 allowable axial deviation
    (mm)*    		 maximum speed
    rpm    		 static torsional stiffness
    (N.M/rad)    		 moment of inertia
    (Kg.M    2)    		 Material of shaft sleeve Material of shrapnel surface treatment weight
    (g)
    GL-19X27 1 0.12 1.5 ±0.18 10000 170 9.1x10-7

    SUS304

    Spring steel

    		 Anodizing treatment 14.6
    GL-26X35 1.5 0.15 1.5 ±0.3 10000 820 3.0x10-6 37
    GL-32X41 2 0.17 1.5 ±0.36 10000 1750 1.0x10-5 67
    GL-34X45 3 0.17 1.5 ±0.36 10000 1860 1.1x10-5 77
    GL-39X50 6 0.22 1.5 ±0.45 10000 2860 3.0x10-5 118
    GL-44X50 9 0.22 1.5 ±0.54 10000 3300 3.8x10-5 144
    GL-50X63 18 0.1 1.5 ±0.54 10000 3300 3.0x10-5 235
    GL-56X64 25 0.27 1.5 ±0.72 10000 9480 1.6x10-4 318
    GL-68X75 60 0.31 1.5 ±0.8 9000 19000 2.0x10-4 492
    GL-82X98 100 0.55 1.5 ±0.8 8000 28450 2.5x10-4 1013
