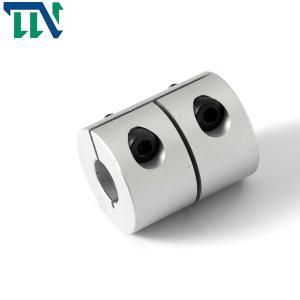

Stainless Steel Rigid Shaft Coupling Design Rigid Coupler 32x32mm

Stainless Steel Rigid Shaft Coupling Design Rigid Coupler 32x32mm

Rigid Clamping GNC 32*32 Aluminum Shaft Coupling

Rigid Clamping GNC 28.5X 38 Aluminum Alloy Shaft Coupling For Machine

Products Features

The flanged coupling is a rigid coupling, which is to connect two half-couplings with flanges to the two shafts with ordinary flat keys, and then use bolts to connect the two half-couplings into one to transmit motion. and torque. This kind of coupling has two main structural forms: 1. Relying on the hinged hole to use bolts to achieve the alignment of the two shafts and relying on the bolt rod to withstand extrusion and shearing to transmit torque; 2. relying on a half-coupling on the The shoulder is aligned with the groove on the other coupling half. The bolts connecting the two half-couplings can use ordinary bolts of grade B and B, and the torque is transmitted by the friction torque of the joint surfaces of the two half-couplings.

Rigid couplings are divided into flange couplings, radial key flange couplings, sleeve couplings Clamp shell coupling and parallel shaft coupling flange coupling: use bolts to connect the flanges of the two half couplings to realize the coupling of the two shafts. Radial key flange coupling: use radial keys and ordinary bolts to connect the two half couplings. Sleeve coupling: use common sleeves to connect the two shafts in some way. Clamp shell coupling: use two clamp shells divided along the axis to clamp in some way to realize the coupling of the two shafts Parallel shaft coupling: a coupling in which two parallel shafts are connected by using the intermediate plate through the pin shaft

It has the advantages of simple structure, low cost and large torque transmission. Therefore, it is often used when the speed is low, there is no impact, the rigidity of the shaft is large and the alignment is good. Flange coupling (also known as flange coupling) uses bolts to connect two flange (flange) disc half couplings, and the two half couplings are connected with two shafts with keys respectively, so as to realize two shaft connection and transmit torque and motion. Flange coupling has the advantages of simple structure, convenient manufacture, low cost, reliable operation, simple assembly, disassembly and maintenance, large transmission torque, which can ensure that the two shafts have high centering accuracy. It is generally used for shaft transmission with stable load, high speed or high transmission accuracy

Changzhou Tianniu Factory is a professional manufacturer of plum couplings, rigid couplings, universal couplings, cross slide couplings, winding couplings, bellows couplings, double membrane couplings and other products. The processing company has a complete and scientific quality management system.
