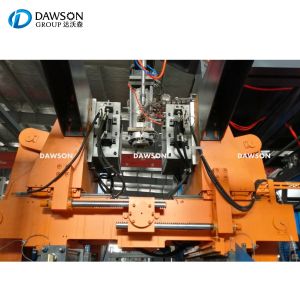

ABLB80 Extrusin Blow Molding Machine 30L Jerrycans Making Machine

Blow molding machine is a kind of plastic processing machine. After the liquid plastic is sprayed out, the plastic body is attached to the mold cavity of a certain shape by using the wind force blown out by the machine, so as to make the product. This kind of machine is called blow molding machine.

DAWSON MACHINERY & MOLD GROUP

Extrusin Blow oMolding Machine ABLB80

suitable for making plastic bottle, jars, containers, jerrycans up to 25L,

the whole blow molding machine is equipped with bilingual operation panel and automatic configuration

from world famous brands to realize the advantages of simple operation and high automation

​​​

Product Description

​​ ​​

Machine Model		Max. Bottle size	Production forecast
ABLB90	Single Station Single Head	25L	48~50 BPH

​​

Technical Parameters

​

Automatic Extrusion Blow Molding Machine ABLB90-25L

Product: 20L / 25L HDPE Jerry cans
Power supply: 380/220v 50/60 Hz Tri-phase
Output capacity:20~25L: 50~60 pcs/h (1200~1400 pcs/day)
Layer: Single layer
Lever line system: Available
Parison control: MOOG 100 points
Max volume: 25L (Single die head)

​

Basic parameters	Suitable material	PE.PP,PVC,PS,PETG,so on
	Max volume	25L
	Output capacity	50~60 PCS/H
	Size	4.4*3.4*3.6(M)
	Weight	11.3T
system	Specification	Parameters	Note
Plasticizion system
	Summarize	High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
	Reducer	Hard finishing,High intension,Low noise reducer
	Screw 1	80mm,L/D ratio 25,130kg/h 38CrMoALA	Cooling system available
	Heating Zone	4 Aluminum Heater	Automatic heating
	Heating power	10KW/H
	Cooling Fan	Separate cooling system for heaters	Automatic cooling

​​​​​​​

High Quality Mould

​

High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

​

​

Company Profile

​

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...

​​

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,

blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,

to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,

customers from more than 45 countries, we provide complete solution for your plastic industry

business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

​

Customer Photos

​​​​​

​

Our service

​

FAQ

Q: Can we visit your factory? Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's DAWSON's advantage? DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time. DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

​​​
