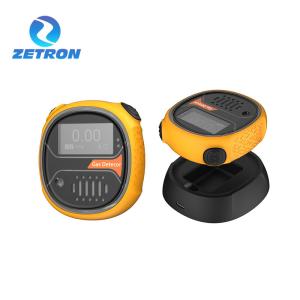

Dustproof Carbon Monoxide Gas Detector
Personal Gas Detector
OVERVIEW
MS104K-S portable gas detector adopts a high-counting array display
to display the concentration in real-time and record storage.The detector can effectively predict the concentration of dangerous
gas alarms, to ensure that the safety of staff life is not
threatened, and production equipment is not lost.
The detector is widely used in petroleum, chemical industry,
environmental protection, metallurgy, refining, biochemical
medicine, agriculture, explosion prevention.
FEATURES
●Large-capacity data storage function, supporting 100,000 data
storage capacity. Support real-time
Storage, timing storage, or only alarm concentration data and time,
support local viewing and deleting data,
The data can also be uploaded to the computer through the USB
interface, and the data can be analyzed, stored, and printed with
the host computer software.
●MS104K-S can be selected to detect 1～4 kinds of gases at the same time, and
the unit can be switched freely
Optional units: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/L
●Three display modes can be switched: display the concentration of
four gases at the same time, the concentration of the
single-channel gas and the real-time curve are displayed in large
fonts, each channel
●Waterproof, dustproof, explosion-proof, shockproof, intrinsically
safe circuit design, anti-static, anti-electromagnetic
interference,
PARAMETER
Detection gas | Complex gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2,
flammable gas EX) or any other single gas, except individual
sensors with high power consumption |
Detection range | CO (0 ~ 1000ppm), H2S (0 ~ 100ppm), O2 (0 ~ 30%VOL), Ex (0 ~
100%LEL),Other range can be customized |
Display mode | HD LCD dot matrix display, double button operation |
Detection accuracy | ≤±3% (F.S) |
Response time | T90≤30s |
Data storage | Standard 20,000 pieces of data capacity, Support the local view,
delete or data export, storage time interval arbitrary Settings |
Communication interface | Infrared communication, Optional Bluetooth, LORA communication, etc |
Explosion-proof mark | Exia II CT4 Ga |
Protection grade | IP65, Dustproof, Waterproof splash |
Dimensions | 77×68×35mm(L×W×H) |
Weight | Less than 150g |
APPLICATION
