Underwater Rescue ROV
VVL-M230-4T
Introduction:
Underwater Rescue ROV is specialized in ares of underwater search
and salvage,criminal investigation,rescue,etc.It can use the
thrusters to control the robot to move forward,backward,left and
right to achieve precise grasp.It can observe the underwater
circumstances through monitor and can accomplish the underwater
salvage work by controlling the manipulator to open and close.It
can guarantee the safety of the rescue people and the trapped
people to the greatest extent.High spot LED light and the
underwater camera with low illumination level makes outstanding
underwater camera effect and easy operation.
The whole structure adopts balance design.The salvage way adopts
eagle vertical catching design.The manipulator adopts shell shape
involution closed design and can equip with high magnet.The UHMW-PE
body material can use more than 20 years.It is mainly equipped in
the local police station,110 petrol car,rescue team,marine
police,patrol ship,etc.
1)Faster the rescue speed of police officer and decrease their
danger.
2)Strengthen the processing ability of police officer to the danger
circumstance
Configuration:
The camera shell can prevent the underwater compact and sand
grinding.
Front camera adopts the latest patent technology which can be
vertically rotary 180degree,LED light always tracks with the
camera,which is unprecedented.Downward looking camera can see what
has been collected by the manipulator clearly

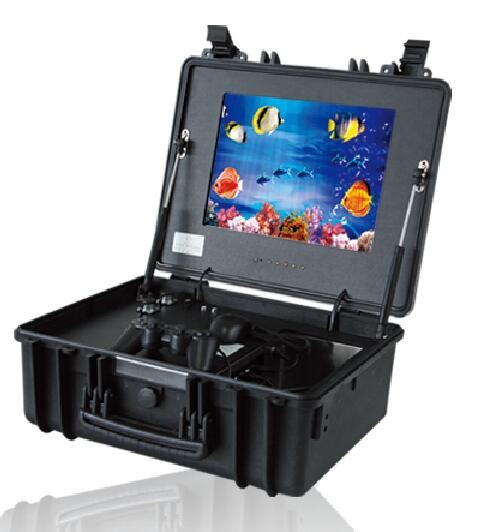

Console:Host computer control,19inch high light monitor
Manipulator:Stainless steel manipulator,controlled by
console,adopting eagle vertical grasping design, shell shape
involution closed design and can equip with high magnet to absorb
the steel weapons.
DVR:500G,video and picture can be stored at the same time,USB
port,easy to export
Body:Aluminum and UHMW-PE material which can use more than
20years,suitable for ocean,lakes,ponds,rivers
Camera:can take photos
Cable:200M cable,special for underwater use,bear weight of
100kg,diving depth 200M
Illumination:2 sets of 15W underwater high perspective red LED
light,light tracks camera technology
Motor:4 sets of thrusters with controllable speed,control the robot
to move forward,backward,left,right,up and down.Maximum forward and
upward pushing force can reach 20kg.
Compass:Surface compass and underwater compass,can show the
direction of console and robot,so the operators can confirm the
sailing angular deviation quickly
GPS:Show the GPS location,record 1000 GPS coordinate point
location,have the seeking functions in 0.5-100KM radius
Sailing:Speed 0-2m/s,depth sensor,auto depth sailing,auto depth
suspension,auto direction sailing
Power consumption:Max AC 200-240V 2500W
Visible distance:Efficient observation distance for one class water
is above 5m
Robot size and weight:680*470*540mm 21kg
Console size and weight:500*430*240mm 15kg
Working temperature:-20 - 40℃
Packing:Aluminum case
Site picture
Glad to share with you a report from underwater rescue customers:
One drowner was found in the Inverted siphon tunnel of AnYang trunk
canal on April15,2017.Fire armymen came to the site to start the
rescue,but because the Inverted siphon hole is 175m long and the
light is bad,they couldn’t find it after searching for many days.
The local police station asked for the local underwater rescue
team’s help through 110 command center. They carried our
VVL-M200-4T Underwater Rescue ROV to come to the site immediately
and operated it to come down to the water to search for the
drowner.
After searching for about half a day,they found the drowner.The
head of the drowner was firstly appeared in the below video on 30
seconds’s place.Then the whole body was appeared on the screen
during the camera rotation.Then the ROV came to the surface to
finish the location.The video measure data showed the drowner in
80m deep hole.They suspected that the drowner was slipped to the
water by accident due to the steep slopes..The drowner has been
successfully salvaged from the tunnel finally.
