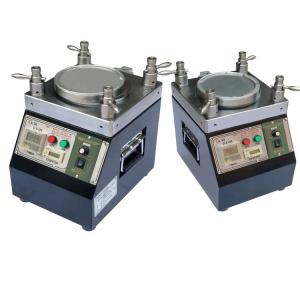

Fiber Optic Polisher,CLX-02E is corner pressure polishing machine
for fiber connectors
Factory Price Fiber Optic Grinding Equipment Fiber Optical
Polishing Machine
Model:CLX-02E
Place of Origin:ShenZhen,China
Product Description of Fiber Jumper Polishing Machine
Polishing Machine Fiber Optic Features
1. The high quality stainless steel material after heat-treatment
ensures the high precision & durability of the machine,Excellent
stability, Eight or ten years lifetime
2. APC return loss ≥60dB , PC(UPC)return loss ≥55dB , Insertion
loss ≤0.20dB ( typical)
3. The polishing trails obey the planet orbit. Polishing rotation
speed is adjustable with normally 140RPM.
4. The fiber polishing fixture is IPC Structure, Independent
compression of each connector. The fiber optic connector polishing
3D pass rate> = 98% (100% Typical, according to IEC),
5. High efficiency, The first pass yield for end face quality reach
98%～100%.
Specifications of Fiber Optic Polishing Machine
| 1. Model Number | CLX-02E |
| 2. Machine Size | 285*220*338mm |
| 3. O.D. of Rotation Plate | 127 mm(5 inch) |
| 4. Time Settings | 99 min 99 sec (Max) |
| 5. Speed for Rotation Plate | 80 rpm |
| 6. Height of Plate Jumpiness | <10 um |
| 7. Pressure Configuration | 21 ~ 36 N/cm2 |
| 8. Work Temperature | 10℃~40℃ |
| 9. Relative Humidity | 15%~85% |
| 10. Noice | unloading Less 50 dB |
| 11. Libration | Working Status 0.25g 5~100Hz 10min |
| 12. Stopping Status | 0.50g 5~100Hz 10min |
| 13. Power Input | 110~230 VAC 50Hz/60Hz |
| 14. Electric Power | 126W |
| 15. Net Weight | 27kg |
| 16. Materials | stainless steel |
| 17. Lnsertion Loss | ≤0.20dB |
| 18. Return Loss | ≥55dB(UPC,PC) ≥60dB (APC) |
About shipping
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the
world's largest shipping companies, you can provide us with your
courier account, we will help you choose the cheapest and the
cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples.
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly
extended based on order quantity
5. How do we pay?
......Book in advance or multiple payment methods such as T / T and
T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will
provide free repairs, except for consumables). After the warranty
period, accessories will continue to be provided and will be
charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer
requirements and description.
Features
1. Square-pressure type polishing machines ensures
adjustable,precise and even polishing.
2. Adjustable speed,direction and pressure.
3. Pucks available in most connectors type and for APC.
