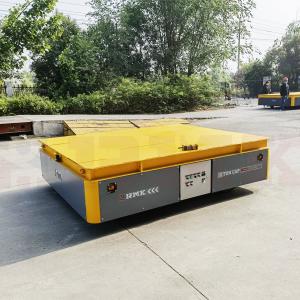

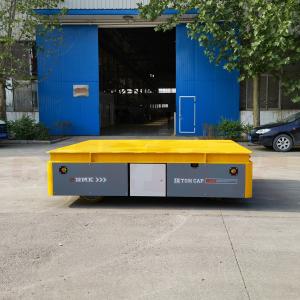

Electric Platform Trolley



All the industrial battery supply electric platform trolleys no rail dolly for die and mold transfer cargo are equipped with warning alarm and security detection apparatus, and the alarm would ring and the car would stop immediately if there was any obstacle or pedestrian in the running path of the industrial battery supply electric platform trolley no rail dolly for die and mold transfer cargo. Also, we will provide an intelligent automatic rapid charger with the battery supply electric platform trolley. Positioning fixtures, lift platforms, and other assistive devices are optional to meet different demands on various occasions. The PLC is also an alternative if it’s necessary.

Technical parameters for trackless electric transfer carts
Rated load(t) 5 10 15 20 30 40 50 150
Impacted rated loa(t) 7.5 15 22.5 30 45 60 75 225
Structure of frame steel plates welded, beam structure
Max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12 27
Ground requirement cement floor steel plate ground
Table size(mm) 3000×
2000
3600×
2000
4000×
2200
4500×
2200
5000×
2200
5500×
2300
6000×
2300
10000×
3000
Height of the whole cart(mm) 450 530 600 600 650 700 700 1200
Ground clearance(mm) 50 75
Turning radius(mm) 2501 3101 3401 3901 4301 4801 5201 10001
Turning type turning while driving with no stop
Control method for turning control button
Turning structure mechanical
Wheel material ZG55+hydropur ture
Running speed(m/min) 0-15 0-12
Brake principle electric magnetic brake
Operation method with wire or no wire
Battery model D-250x24 D-33x24 D-400x24 D-440x24 D-250x36 D-330x36 D-440x36 D-600x36
Battery maintenance free of maintenance
Charger's installation installed on cart split-type





Electric platform trolley, also known as an electric transfer vehicle, level car, trolley, cross-train, electric rail cart, climbing train, etc., is a factory-in-vehicle electric transport vehicle, first, it is an orbital type transport trolley, It is necessary to lay the rails on the ground, and the track is generally the trailer surface contact rail; second it is an electrically driven platform trolley, automatically runs under the motor reducer, and again it is a flat plate, the countertop is flat, and in special cases, It can also be a non-planar but invisible cover, and there is no steering wheel without a steering wheel (even if the turn is turned by track). Such vehicles have simple structures, convenient use, large load capacity, are not afraid of dirty, are easy to maintain, long service life, etc., because of their convenience, strong, economic, practical, easy cleaning and other advantages, etc., become internal and factory buildings Short-distance fixed-point frequent vehicle transportation tools between the factory buildings.

Electric platform trolley main applications and electricity and drop in water blank cars, etc. Transport vehicles, electric dump trucks, electric sanitation products, etc. Electric transport vehicles and electric dump trucks are also applied to flour plants, distributors, foundry, chemical plants, furnace materials, farms, etc.

" }
