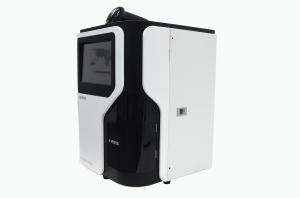

Labnovaion Analyzer LD-560 For HbA1c Testing CV<2% HPLC Method
IFCC Certificated HbA1c Analyzer
Intended Use
LD-560 is a fully Automated HbA1c Analyzer which is used in
conjunction with suitable reagents for the quantitative detection
of glycosylated hemoglobin (HbA1c) in human blood.
Specification
| Model | LD-560 |
| Method | HPLC |
| Parameters | HbA1c, HbF, HbA1a, HbA1b, HbA0; HbA2 (optional) |
| Test Speed | 90 seconds per test |
| Reagents kit | Eluent A, Eluent B, Hemolysis |
| Autoloader Capacity | 20 tubes |
| Precision | CV＜2% |
| Dimension | 378(L) ×380(W)×510(H)mm |
| Weight | 28kg |
Operation Preparation
Before operating this analyzer, please read the operation manual
carefully to avoid malfunction or damage.
If the analyzer is used in a manner not specified by the
manufacturer, the protection provided by the analyzer may be
destroyed.
Before turning on the analyzer, the operator must check the
following requirements to ensure that the system is ready.
(1) Check the remaining amount of reagents
Check whether the remaining amount of eluent A, eluent B, eluent C
and hemolysis agent is sufficient.
(2) Check the waste liquid barrel
Check whether the waste liquid barrel has been emptied before
starting the analyzer every day.
(3) Check the liquid tubes and power supply
Check whether the tubes of reagent and waste liquid are bent and
whether the connections are reliable.
Check the analyzer for fluid leakage.
Check whether the power plug of the analyzer is securely inserted
into the power socket.
(4) Check the printer
Check whether the paper roll is sufficient and whether it is
installed in correct place.
Certificate
FAQ
- Is there a capillarys/minicap computer?
A: Yes , we have. The display is a minicap computer.
A: Yes, we have. LD-560 install the built-in printer.
- With electric shock protection system or not?
A: Yes. The instrument has been tested by safety regulations and EMC to
meet regulatory requirements.
- The numbers of sample positions ?
A: Ring injection, 20 sample positions.
