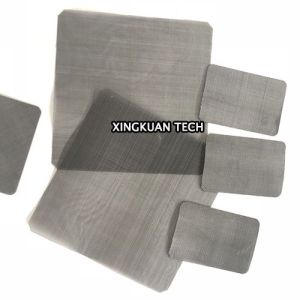

Custom Stainless Steel Stamped mesh Discs and Steel Mesh Blanks
Descriptions :
The mesh disc is weaved by stainless steel wire in high quality of
304 or 316 in wire mesh roll . It is placed on slitting machine to
be slitted into small roll width .we can built new dies based on
request - shapes , diameter , etc to punching on machine , if
customer need several layers or frame , we have to do further
process to meet the final requirement . Before we do the final
order , we always offer sample to client to aprroval and before
disaptch , we have strict quality control to assure smooth face or
flat face , right size with very very small error , no loosing wire
outside , and no burs , very good edge to assurre when you get it ,
you are satisfied and have a good purchase feeling .
Quick details & specifications :
Screen type :customed stamped mesh by dies
Material: stainless steel woven wire mesh (304,316,316L ,etc )
Weaving type : Plain ,Plain dutch ,Twill ,Twill dutch
Diameter :it is customed on request
Layer: single or multilayers
Mesh count : square upto 500 mesh , dutch weave /hollad weave upto 2800mesh
Shape : customerized ,any shape you offer to us .
Process technology: slitting -punching/stamping through dies - spot weld or framed by
machine , packing on customerized
Notice : Below is only parts of standard mesh , customerized is
always available for us !
Dutch weave parameters of standard extruder screen :
| Weaving Type | Mesh counting | Absolute micron rating | Nominal micron rating |
| Plain Dutch | 12X64 | 270-290 | 200 |
| Plain Dutch | 14X88 | 220-240 | 150 |
| Plain Dutch | 16X80 | 225-235 | 140 |
| Plain Dutch | 24X110 | 115-125 | 80 |
| Plain Dutch | 30X150 | 110-112 | 63 |
| Plain Dutch | 40X200 | 70-75 | 55 |
| Plain Dutch | 50X250 | 58-63 | 40 |
| Plain Dutch | 80X400 | 40-45 | 35 |
| Twill Dutch | 30X250 | 110-120 | 53 |
| Twill Dutch | 80X700 | 35-40 | 25 |
| Twill Dutch | 120X400 | 50-55 | 40 |
| Twill Dutch | 165X800 | 25-28 | 15 |
| Twill Dutch | 200X600 | 30 | 20 |
| Twill Dutch | 165X1400 | 16-20 | 10 |
| Twill Dutch | 200X1400 | 12-14 | 5 |
| Plain weave parameters of standard extruder screen mesh |
SS Mesh |
Wire Dia. mm | Aperture Size mm |
Open Area |
10 X 10 | 0.711 | 1.829 MM | 51.8 |
14 X 14 | 0.457 | 1.357 MM | 55.9 |
16 X 16 | 0.457 | 1.131 MM | 50.7 |
20 X 20 | 0.457 | 0.813 MM | 41.0 |
24 X 24 | 0.376 | 0.682 MM | 41.4 |
30 X 30 | 0.376 | 0.531 MM | 34.2 |
30 X 30 | 0.310 | 0.536 MM | 40.0 |
40 X 40 | 0.274 | 0.361 MM | 32.3 |
50 X 50 | 0.193 | 0.335 MM | 43.6 |
60 X 60 | 0.193 | 0.230 MM | 29.8 |
80 X 80 | 0.122 | 0.196 MM | 37.9 |
100 X 100 | 0.102 | 0.152 MM | 36.0 |
120 X 120 | 0.091 | 0.120 MM | 31.8 |
150 X 150 | 0.071 | 0.088 MM | 29.6 |
200 X 200 | 0.050 | 0.077 MM | 36.76 |
300 X 300 | 0.040 | 0.045 MM | 27.83 |
325 X 325 | 0.035 | 0.043 MM | 30.49 |
400 X 400 | 0.028 | 0.036 MM | 31.25 |
Applications :
- extrusion machine
- oil pick-up application.
- automotor ,car
- chemical , gas , water filtration
- other industires
Pls offer descriptions or sample or drawings before we offer a best
quotation for you
Material -
shape -
Size -
Mesh -
Quantity -
And other special request !
