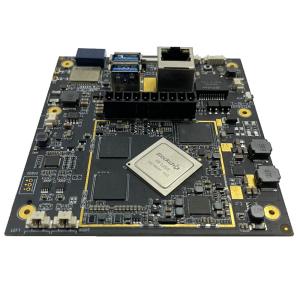

Attendance YT-19 PCB Motherboard Support OTG USB 3.0 RS-485 26bit

YT-19 Motherboard Support OTG USB 3.0 RS-485 26bit, 34bit Wegan relay Gigabit wired Ethernet 5.8G, 2.4G WiFi

YT-19 Characteristics:

* Adopt dividing line design, the size is only 103.5mm*95mm*4mm
* Use RK's own RK808 PMU to ensure stable and reliable work, at the same time, the cost is low enough;
* Support emmc of a variety of brands and capacities, the default use of Samsung 16GB emmc;
* Dual channel LPDDR3 design, support 2GB capacity by default, 4GB capacity can be customized;
* Support power dormant and wake;
* Support android7.1.1 operating systems;
* Support wide dynamic binocular camera and bio-assay detection, using AR0230 chip;
* Support laser infrared distance measurement function;
* Support dynamic adjustment of white filling light, red indicator, green indicator;
* Supports voice microphone;
* Support multi-touch function;
* Support 5.8G, 2.4G WiFi and Bluetooth 5.0;
* Supports Gigabit wired Ethernet;
* Supports POE power supply of Maxim solution IEEE 802.3af/at-Compliant；
* Support OTG and USB 3.0 interfaces;
* Support half-duplex RS-485 function;
* Support half-duplex 26bit, 34bit Wegan function;
* Support access control function, using Panasonic TQ2-5V relay;
* The product is stable and reliable, and continuous mixed workload testing for 7 days and 7 nights without crashing.

Application: Information exchange, face recognition, binocular camera, intelligent access control, attendance and so on

YT-19 is a main board based on RK3399, which is independently developed, produced and sold by Shenzhen YECON Technology Co., Ltd.
RK3399 represents the top level of domestic chips. It is a six-core high-performance CPU composed of four A53 cores and two A72 cores, and the main frequency is up to 2GB.
RK3399 is a monster in terms of both CPU and GPU. The dual Cortex-A72 CPU with large cores and four Cortex-A53 CPU with small cores are optimized for integers, floating-point, memory, etc., providing revolutionary improvements in overall performance, power consumption, and core area. GPU adopts a new generation of high-end image processor Mali-T860 with quad-core ARM, which integrates more bandwidth compression technologies, such as intelligent superposition, ASTC, local pixel storage, etc., and supports more graphics and computing interfaces with the overall performance improved by 45% compared with the previous generation.
While these capabilities are touted as "top of the line" by the same solution chip solutions, they are not the point with the
RK3399. What's attracting is that the dual cameras support gesture recognition, three features that will be disruptive to the
gaming box experience, and support for LPDDR4 memory and many other new features, which are both ahead of the mainstream products.
Thanks to the high configuration and overall performance improvement, as well as the overall layout, the RK3399 is born to be a multi-faceted expert. In addition to the tablet, VR, TV - BOX, notebook, RK3399 application also covers all kinds of terminal in the field of industrial and consumer, including the information interaction, face recognition, identity verification, binocular camera, intelligent access control, attendance, high shoot, advertising machine, mobile payment, VR, all-in-one, financial POS machine, vehicle control terminals, thin client, VOIP video conference, security/monitoring/police and IoT and other fields.
