INFS-035 500kg Stainless Steel Tension And Compression Load Cell mini weight force sensor for welding machine

    Buy cheap INFS-035 500kg Stainless Steel Tension And Compression Load Cell mini weight force sensor for welding machine from wholesalers

    Buy cheap INFS-035 500kg Stainless Steel Tension And Compression Load Cell mini weight force sensor for welding machine from wholesalers
    • Buy cheap INFS-035 500kg Stainless Steel Tension And Compression Load Cell mini weight force sensor for welding machine from wholesalers

    INFS-035 500kg Stainless Steel Tension And Compression Load Cell mini weight force sensor for welding machine

    Ask Lasest Price
    Brand Name : Innovation
    Model Number : INFS-035
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 1000pcs per month
    • Product Details
    • Company Profile

    INFS-035 500kg Stainless Steel Tension And Compression Load Cell mini weight force sensor for welding machine

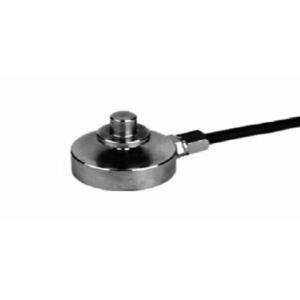

    INFS-035 Screw Tension And Compression Mini Load Cell


    Screw Tension And Compression Stainless Steel Mini Load Cell for welding machine


    Mainly applied in tension and compression testing instruments , automatic equipments and testing fields,such as insertion force test instruments,riveting machine,welding machine,hot & cold lamination machine,feeling tester for keyboard switch, and etc.

    Rated capacities(Emax): 200kg,500KG

    Recommended Excitation: 2.5-5V

    Material: Stainless Steel



    Capacity200kg,500KGMaterialStainless Steel
    Rated Output1.0-1.5mV/VOutput Impedance350±3Ω
    Zero Balance±2%F.S.Insulation≥5000MΩ/100VDC
    Non-linearity1.0-5%F.S.Recommended Excitation2.5-5V
    Hysteresis1.0%F.S.Maximum Excitation10V
    Repeatability1.0%F.S.Compensated Temp Range-10~60ºC
    (30)Creep (30min)0.1%F.S.Operating Temp Range- 20~80ºC
    Temp Effect on Output0.1%F.S./10ºCSafe Load Limit120%
    Temp Effect on Zero0.1%F.S./10ºCUltimate Load Limit150%
    Input Impedance350±5ΩCable Sizeφ(2-3)x 3m
    Wire ConnectionEx + : Red; Ex - : Black; Sig + : Green; Sig - : White
