    2400MHz To 2500MHz 2.4GHz 18dBi Panel Antenna With Radio Enclosure Box Antenna

    Ask Lasest Price
    Brand Name : XJS
    Model Number : TDP-2425-18
    Certification : ROHS CE
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000+PCS+month
    • Product Details
    • Company Profile

    2400MHz To 2500MHz 2.4GHz 18dBi Panel Antenna With Radio Enclosure Box Antenna

    2400MHz To 2500MHz 2.4GHz 18dBi Panel Antenna With Radio Enclosure Box Antenna


    Panel Enclosure Antennas are high performance directional panel antennas suitable for indoor and outdoor applications in the 2.4GHz band allowing the integration of the customer's electronic equipment inside.

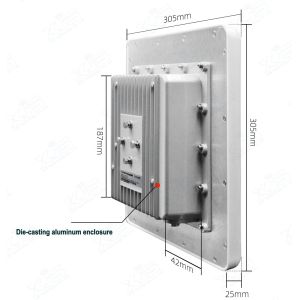

    The weatherproof aluminum die-casting enclosure provides an enclosed space to mount radios, amplifiers, and other electronic equipment directly behind the panel antenna. Standoffs are provided to help mount equipment securely into the equipment bay.


    Features

    • Heavy duty all weather radome
    • Can be mounted for horizontal or vertical polarization
    • DC ground lightning protection
    • Includes tilt and swivel mast mount
    • N-Female connector

    Application

    • 2.4 GHz Indoor/Outdoor Wireless LAN systems
    • Subscriber sites and CPE applications
    • Supports IEEE 802.11b/g/n applications
    • WiFi and 2.4 GHz wireless video systems
    • Public wireless hotspots

    Electrical Specifications

    Frequency Range2400-2500 MHz
    Gain (dBi)18 dBi
    Horizontal Beamwidth20°
    Vertical Beamwidth20°
    VSWR<1.5
    PolarizationVertical
    F/B Ratio≥25db
    Impedance50Ω

    Mechanical Specifications

    ConnectorN-female
    Dimensions306 x 306 x 30mm
    Weight (Kg)2.6 kg
    Lightning ProtectionDc Ground
    Rated Wind Speed126/ms
    Mounting TypePole Mount
    Suitable pole diameterФ30-80mm



    Enclosure Specification

    Outer Dimension:220*220*60mm
    Inner Dimension:190*190*50mm
    Number of ports:4
    Max Port size:21mm
