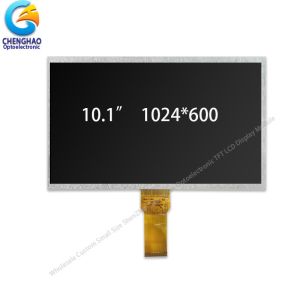

10.1 Inch Thin Film Transistor Liquid Crystal Display 1024*600
Hight Resolution
1. Specification of Tft Lcd Module
| Module number | CH101WS03B |
| Resolution | 1024× 3(RGB) × 600 dot |
| Active Area | 222.72*125.28 mm |
| View angle | 12:00 |
| Pixel Arrangement | RGB-stripe |
| Surface Treatment | Plant |
| Electrical Interface | RGB |
| Brightness | 300(cd/m2) |
| Contrast ratio | 500:1 |
2. Description of Lcd Display
Chenghao is a professional lcd module supplier, which can provide
OEM services for small LCD display users around the world. Our
CH101WS03B is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a
switching device.This model is composed of a 16M color HD TFT LCD
panel, a driving IC, a 300 cd /m2 back-light and 50pin FPC.
This TFT LCD has a 10.1” (Horizontal screen) diagonally measured
active display area with 1024*600 dots resolution. The control IC
is mounted on the glass and interconnected with the display
components via FPC.
If the functional parameters of this module do not match your
project, we can also re-customize it according to your
requirements, including backlight brightness, FPC shape structure
and interface definition.
In addition, we also have rich experience in integrating tft lcd
module into touch screen display with special cover, please contact
us if you have related requirements.
3. Drawings of Tft Display
Notes:
(1) Display Type : 10.1 inch Tft lcd
(2) Viewing Direction : 12 o'clock
(4) Polarizer Mode : Tn / Transmissive / Normally While
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
4. Qucik Detail of Tft Lcd Monitor
* LCD name: 10.1 Inch Thin Film Transistor Liquid Crystal Display
1024*600 Hight Resolution
* Part No.: CH101WS03B
* Size.: 10.1"
* Support touch panel Type: CTP / RTP
* Display type: 10.1" TFT
* Display colors: 16.7M
* Resolution (pixels): 1024x600 dots
* Viewing direction: 12:00
* Display mode: TN / Transmissive / Positive
* Overall size: 23.5(W)*14.3(H)*0.5(T) cm
* Active Area: 22.272(W)*12.528(H) cm
* Luminance: 300 Nit
* Contrast: 0.002
* Interface: RGB
* Pin NO.: 50 pin
* Pin pitch: 0.035 cm
* Backlight : 36 pcs While LED
* Operating temperature: -20 ~ +70 ℃
* Storage temperature: -30 ~ +80 ℃
