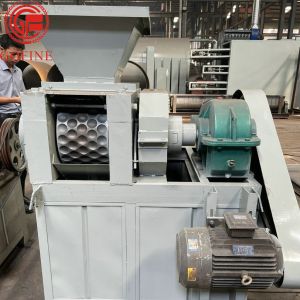

Compound 1.5TPH Double Roller Granulator Machine For Fertilizer
Granulation
Double Roller Granulator Machine Introduction
The double Roller Granulator Machine is the key equipment for
compound fertilizer granulation. It has the advantages of advanced
technology, reasonable design, compact structure, novelty and
utility, low energy consumption. It can support the corresponding
equipment, forming a small production line to achieve a certain
capacity of continuous, mechanized production.
Working principle of Double Roller Granulator Machine
The series of Double Roller Granulator Machine is extrusion model ,
its working principle is the belt and pulley driven by electric
motors , to the driving shaft to pass through the reducer, and
synchronization off then gear and the driven shaft opposite the
Work. Material from the hopper to feed, after the roll extrusion
molding making into ball shape, then to the broken screen to finish
the separation, finally get the even oval shape granules;
Technical parameter of Double Roller Granulator Machine
| Type | DGZ—1 | DGZ—1.5 | DGZ—2 |
| capacity | 1—1.5t/h | 1.5—2t/h | 2—2.5t/h |
| granulating ratio | ≥90% | ≥90% | ≥90% |
| power | 11kw | 18.5kw | 22lw |
material moisture content
| 2%—15% |
Granulation temperature
| room temperature |
granules
| diameter | 3.5—10(mm) |
Strength
| 6—20N( Crushing strength ) |
| shape | spheroidicity |
Application Of Double Roller Granulator Machine
