    0.3mm Corrugated Metal Roof Sheet Panel Roll Forming Machine PLC Control

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-RP
    Certification : CE ISO SGS
    Price : negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 sets per months
    Delivery Time : 65 days after deposit
    • Product Details
    • Company Profile

    0.3mm Corrugated Metal Roof Sheet Panel Roll Forming Machine PLC Control

    0.12mm-0.3mm Thickness Corrugated Metal Roof Panel Roll Forming Machine 24 Stations


    Technical parameter:

    Rolling Speed: 0-10m/min

    Feeding width: 1000mm

    Steel sheet Thickness: 0.12-0.3mm galvanized sheet

    Control System: PLC

    Roller Stations: about 22-24 stations

    Roller Material : 45# forge steel, coated with chrome

    Shaft Material and DIA: ¢75mm,material is 45# forge steel, Chrome with quenching

    Motor Power: 7.5 kw main motor

    Hydraulic power: 3kw

    Hydraulic Pressure: 12Mpa

    Tolerance: +1.5mm

    Power supplier: According to Customer’s Requirements

    Way Of Drive:1.2 inch single chain


    Machine List


    Machine list5 tons hydraulic de-coiler1 set
    Main roll forming machine1 set
    PLC Control box1 unit
    Hydraulic station1 unit
    Safety cover1 set
    Spare parts1 set

    working flow



    Profile Drawing


    Samples



    Machine Shows

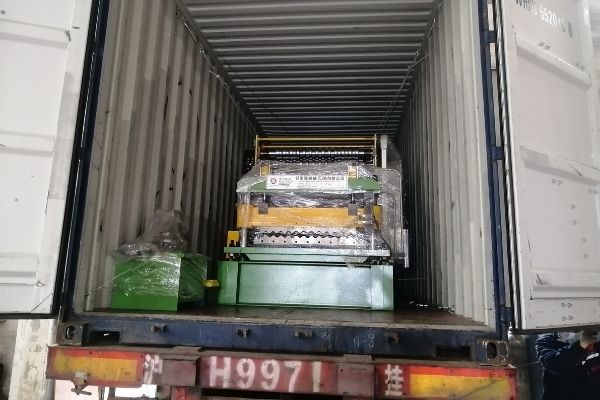

    Loading:


    Advantage

    1. Reasonable Price

    2. High Quality

    3. 12 Months Warranty

    4. More Than 10 Years Experience

    5. Durable

    6. Reliable


    Our service


    1. Professional mechanical background sales for better undestanding customer's need
    2. Experienced in China machine industry for supplying comprehensive machines and equipments
    3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
    4. Engineers available to service machine overseas, for example installation, training, etc
    5. Lifelong service for spares, ware parts, technical supporting, etc
