box sample cutting machine, oscillating knife cut and creasing
machine, digital cutter, plotter, die cut, box maker,
Introduction:
MEC85 series high speed box sample cutting machine is the Maxwell
new developed cutting system for the industries as packaging,
printing, ads, display etc.
It has two independent module design, very good expansibility and
exchangeable tools.
It equips versatile tools as vibrating knife, creasing wheel, drag
knife, V cut knife, which can cut the materials up to 60mm thick
It has 3 kinds of wheels: 3mm, 5mm, 7mm to cut honeycomb board and
cardboard.
You can achieve perfect creasing effect by changing wheels with
suitable depth and width. By adjusting oriented pressure with
software creasing tool, the CNC knife cutter can crease forward and
backward with higher quality and without breaking top layer of
cardboard and honeycomb board.
With V-Cut tool, the groove can be adjusted according to specific
cutting requirements.Available angles are 0°, 15°, 22.5°, 30°,
45°.The industrial CNC knife cutter is mainly used for v-groove
making for honeycomb board, cardboard, corrugated board, grayboard
and other relatively thicker carton board materials.
Thanks for all of the tools, it can capable with many kind of
materials such as corrugated paper, honeycomb board, card paper,
foam, grey board, KT board, PVC expansion.
1. Infrared sensing system, 360°surround security to ensure
operator safety
2. Perfect camera positioning system, support ‘.‘ or ’十‘ mark etc.,
improve work efficiency
3. The sturdy aluminum honeycomb platform has a good suction
effect, ensuring that the platform is flat and not deformed after
prolonged use.
4. Flexible tooling system, compatible with all series tools;
5. Scientific and simple wiring system and chassis circuit design,
stable and safe; equipped with all tool interfaces to support
subsequent upgrade; easy to installation and maintenance
6. Efficient anti-drying and rolling feeding system, complete
feeding and cutting in 5 seconds; Make the machine realize
continuous cutting automatically;
7. Powerful CAD editing and design software, perfect work with
CorelDraw, Adobe illustrator, Onyx, Caldera, PrintFactory, MainTop
software etc.; And support barcode reading for avoiding operator
send the wrong cutting file, improve work efficiency.
8. Accurate tool setting system, easy to operate, can accurately
control the depth of the knife and extend the use time of mat
9. The parameter formulation system can adjust the optimal cutting
parameters according to different materials to ensure the precision
of each cutting;
MEC85 machine takes the whole new table design of steel frame and
the table vacuum zone, which enables the stronger suction and more
stable mechanical properties. Thanks to the auto tool height
system, it makes the machine smarter, just by pressing one key then
the tool depth can be set automatically, therefore avoid the
overcut of the table.
main features:
New steel frame design, more stable of machinery
Cutting depth up to 60mm thickness, cover the major materials.
Two independent module, exchangeable tools.
New vacuum zone, stronger suction

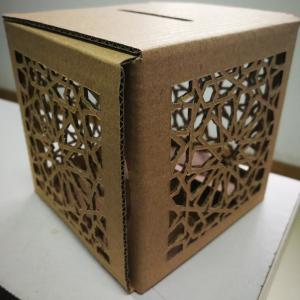

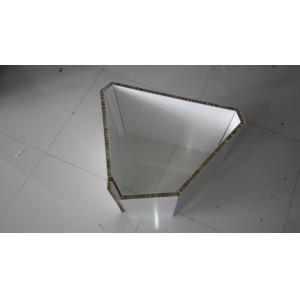

Cutting Samples
