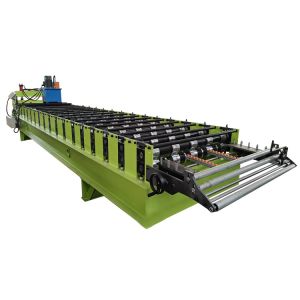

    Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

    Ask Lasest Price
    Brand Name : FMS
    Model Number : FMS-24.3-262.5-1050
    Certification : CE, ISO, TUV
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability : 30 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

    Trapezoidal Metal Roof Tile Roll Forming Machine


    The trapezoidal roll forming machine is composed of hydraulic shear head, roll forming system, electrical system, etc.
    The
    trapezoidal roll forming machine has the following characteristics:

    1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

    2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production
    speed of this line is adjustable from 0 to 15 meters per minute, and the normal operation speed is 8 to 10 meters per minute.
    3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported
    high-quality components with stable performance and high reliability materials applicable to high technical parameters.
    Profile Drawing

    Equipment Detailed Parameters

    WeightAbout 5000kgs
    SizeAbout 8m x 1.2m x 1.3m (length x width x height)
    Suitable Raw Material
    Materialpre-painted steel coil, galvanized steel coil, galvalume steel coil
    Thickness0.3-0.8mm
    Coil width1220mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations18
    Diameter of forming rollers shafts70mm
    Roll Forming Speed0-15m/min
    Forming rollers material45# steel with CNC machining and surface is being hard chrome
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemDELTA PLC and Converter
    Electric Power requirementMain motor power: 5.5kw
    Hydraulic unit motor power: 4kw
    Electric voltageAccording to customer’s requirement

    More machine pictures



    Guarantee


    1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

    2. Repairs will not be performed even during the guarantee period in the follow circumstances

    - Damage occurs due to a natural disaster

    - Malfunction occurs due to user error

    - Malfunction occurs due to modifications

    - Malfunction occurs due to further movement or shipment after installation


    Payment terms


    40% in advance as down payment

    60% is paid before the shipment is processed


    Delivery


    The Delivery Time: 30 working days after the down payment is received.
