AC 220V Silicone Rubber Heater 30-150deg Pad

    Buy cheap AC 220V Silicone Rubber Heater 30-150deg Pad from wholesalers

    Buy cheap AC 220V Silicone Rubber Heater 30-150deg Pad from wholesalers
    • Buy cheap AC 220V Silicone Rubber Heater 30-150deg Pad from wholesalers

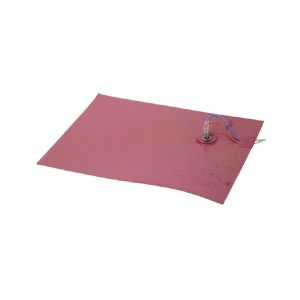

    AC 220V Silicone Rubber Heater 30-150deg Pad

    Ask Lasest Price
    Brand Name : Tuohe
    Certification : CE RoHS
    Price : negotiable
    Delivery Time : within 48 hours
    Payment Terms : Western Union, MoneyGram, T/T
    • Product Details
    • Company Profile

    AC 220V Silicone Rubber Heater 30-150deg Pad

    Flexible Silicone Rubber Preheater 220V AC Electric Heater Mat Silicone Rubber Heating Pad


    Specifications
    Main MaterialSilicone(V0,V1) and imported silicone V0 options
    Temperature Rating482°F(250°C)maximum operating
    Size/Shape LimitationsMaximum width of 48 inches, no maximum length
    Thicknessnormally 0.03 inch/ 0.75mm (Single-Ply),0.06 inch / 1.5mm(Dual-Ply),support custom
    VoltageAny AC or DC (3V-660V), or 3phase
    Power densityNormal 0.03-0.8watts per square centimeter,maximum 3W per square centimeter
    Power lead wireSilicone rubber, SJ Power Cord, or Teflon insulated stranded wire options,usually 100cm length or as requested
    AttachmentHooks, lacing eyelets, Temperature control(Thermostat),
    Description1. Silicon Rubber Heating Pad/Sheet has advantages of thinness, lightness, sticky and flexibility.
    2. It can improve heat transfer, accelerate warming and decrease power under the process of operation.
    3. They are heating fast and thermal conversion efficiency high.

    Insulating resistance
    ≥50MΩ
    Size Deviation
    ±0.5%
    Output
    Up to 5KW/M2
    Wattage Tolerance
    ±5%
    Compressive strength
    1500V/S
    Thermocouple
    K or J type,PT100,PT1000
    Temperature controller
    Dial, Digital thermostat or thermistor, thermal protection or thermocouples etc
    Power lead wire
    Silicone rubber, SJ Power Cord, or PTFE insulated stranded wire
    High voltage resistance
    1.5KV


    1 Dimension(L*W*H):1740*250mm
    2 Weight:1.5kg
    3 Voltage:110v/220v
    4 Warranty:1 Year
    5 Working Temperature Range:30 - 150 ℃
    6 Key Selling Points:Easy to Operate
    7 Material: Silicone Rubber
