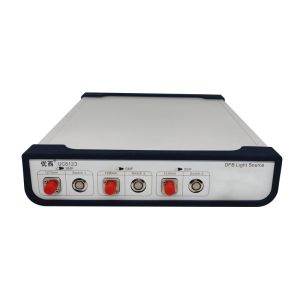

    3 Channels Distributed Feedback Laser DFB Laser Source High Precision

    Ask Lasest Price
    Brand Name : YOUCii
    Model Number : U8123
    Price : negotiate a price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15 pcs+per month
    Delivery Time : 20 work days
    Certification : CU,IOS
    • Product Details
    • Company Profile

    3 Channels Distributed Feedback Laser DFB Laser Source High Precision

    3 Channels Distributed Feedback Laser DFB Laser Source High Precision


    Specification


    Model #U8123
    Device PackageTO
    Optional Wavelength

    850/980/1250/1270/1290/1310/1330/1350/1370/1390/1410/1430/

    1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc.

    Wavelength Accuracy± 3 nm
    Output Power1.0mW
    Connector TypeFC/APC ( Other Adaptor Can Be Customized)
    Bandwidth@3 dB< 0.1 nm
    Bandwidth@20 dB0.5 nm
    Output Power Stability within 15mins≤±0.01 dB
    Output Power Stability within 8 hrs±0. 05 dB
    SMSR> 35 dB (850/980nm),> 40 dB(1250nm etc.)
    Operation Temperature0~ +40 ℃
    Storage Temperature-30~+80 ℃
    Dimensions235 mm W, 55 mm H, 320 mm D
    Weight3.0 kg

    U8121 multi-channel laser light source can be used for WDM device, HIGH precision WDM DWDM device, optical waveguide grating array AWG device, plane optical waveguide PLC device, optical amplifier EDFA and other general fiber optics measurement and application. Especially suitable for couplers and plane optical waveguide PLC components of mass production detection.


    The instrument back
