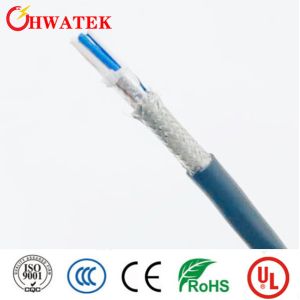

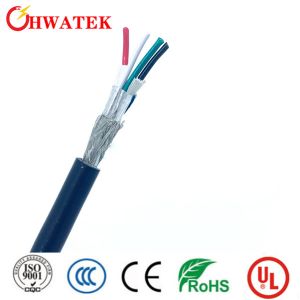

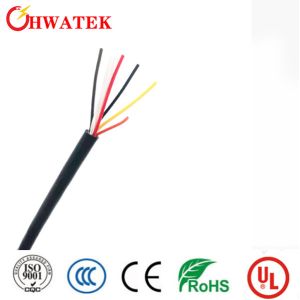

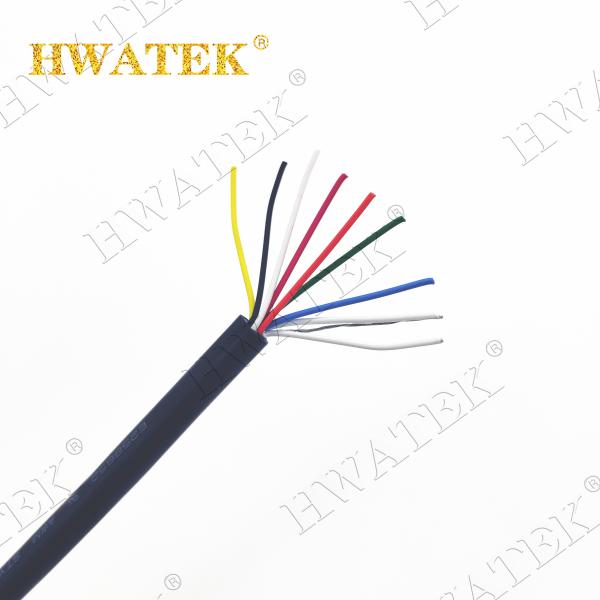

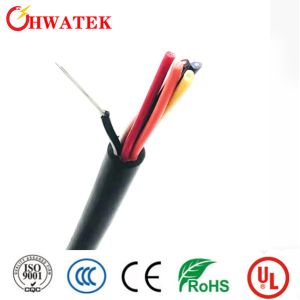

UL2464 AWM 2464 62C×24AWG+ADB Electrical Flexible , Braid Shielded
Cable
AWM2464 62C×24AWG+ADB
Product Description
| Conductor | Tinned Copper Stranded |
| Cross section | 24AWG |
| Construction | 7/0.20mm |
| Strand Dia. | 0.60mm(Ref.) |
| Insulation | PVC |
| Nom.Thickness | 0.23mm |
| Min.Thickness | 0.18mm |
| Insulation Dia. | 1.15±0.10mm |
| Insulation colour | 1~10 Red with numbers 1~10
11~20 Pink with numbers 1~10
21~30 Yellow with numbers 1~10
31~40 Green with numbers 1~10
41~50 Blue with numbers 1~10
51~62 White with numbers 1~12 |
| Filler | Optional |
| Material | Al-mylar(foil face out),≥25% |
| Drain wire | Tinned Copper 7/0.20mm |
| Assembly | 62C×24AWG+A |
| Braid | Tinned Copper |
| Size | 0.16mm,Min.80% |
| Jacket | PVC |
| Nom.Thickness | 1.14mm |
| Min.Thickness | 0.92mm |
| O.D. | 14.0±0.50mm |
| Colour | Per request |
Construction
Conductor : stranded, tinned or bare copper
Insulation: PVC
black cores with continuous white numbering (also available in
other colours on request)
GN-YE conductor, 3 cores and above in the outer layer
Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar
Jacket: PVC
Application
These cables are appropriate for flexible use with medium
mechanical stresses, and free movement without tensile stress or
forced movements in dry, moist and wet rooms but not open air.
Suitable to be used as measuring and control cables in tool
machines,
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature:-20ºC-80ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
