    Engineered Tubular A-Frame For Transmission Tower Construction

    Ask Lasest Price
    Brand Name : Suntech
    Model Number : LBGR120A
    Certification : ISO
    Price : Get the newest price
    Payment Terms : L/C,T/T
    Supply Ability : 50PCS/Month
    Delivery Time : 7-10 days after deposit
    • Product Details
    • Company Profile

    Engineered Tubular A-Frame For Transmission Tower Construction

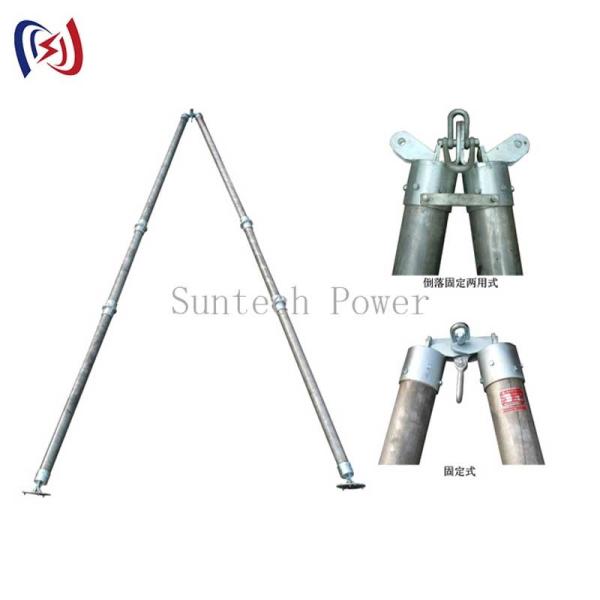

    Engineered Tubular A-Frame for Transmission Tower Construction


    Features:
    The A-Shape Tubular Gin Pole is a heavy-duty lifting system designed for stability and high load capacity in transmission tower construction and maintenance. Its tubular A-frame structure provides superior strength and features:

    High-grade steel or aluminum construction with optional galvanization for corrosion resistance

    Wide base configuration for enhanced stability during lifts

    Integrated rigging points for secure load attachment

    Smooth inner cable guides to reduce friction and wear

    Optional load monitoring system with digital readout

    Quick-connect hardware for fast assembly and disassembly


    Working Principle:
    The A-frame base is anchored to a stable foundation or tower structure

    Guy wires (when used) provide additional lateral support

    A hoisting mechanism (manual or powered) is mounted at the apex

    The load is lifted vertically between the two legs of the A-frame

    Guiding rollers ensure controlled movement and prevent swinging


    Applications:
    Transmission tower erection and maintenance

    High-voltage line installation and stringing

    Substation equipment lifting

    Telecommunication tower assembly

    Bridge cable and structural installations


    Advantages:
    ✔ Exceptional Stability – A-frame design resists tipping and side loads
    ✔ Higher Load Capacity – Supports heavier weights than single-pole systems
    ✔ Precision Control – Ideal for aligning large tower components
    ✔ Durable Construction – Weather-resistant materials for long-term use


    Service & Support:
    Engineered load calculations for specific project requirements

    Custom fabrication available for unique applications

    Comprehensive inspection and maintenance guidelines


    Use and Characteristics

    During used for transmission and distribution line engineering, sling tower material, positioning pulley set use.

    Adopt single-arm style, free from direction restriction, use convenience.

    The main material adopts right angle aluminum titanium alloy section, rivet joint makes, portable and durable.


    Item numberModel

    Length

    (M)

    Diameter*wall

    (MM)

    Vertical Load

    (KN)

    Safety Factor

    (K)

    Weight

    (KG/M)

    03311LBGR120A6-9120x717-302.57.5
    03321LBGR150A8-13150x613-312.58
