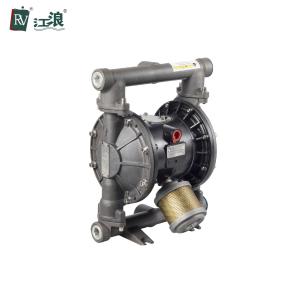

1” inch Aluminum Alloys Air Diaphragm Pump Low Noise Perfect
Sealing
Air Operated Double Diaphragm Pump Introduction
Also know as a Membrane pump, air diaphragm pump (AOOD) or
pneumatic diaphragm pump that uses a combination of the
reciprocating action of a rubber, thermoplastic or diaphragm and
suitable valves either side of the diaphragm (check valve,butterfly
valves,flap valves,or any other form of shut-off valves) to air
diaphragm pump a fluid.
Application
1. Air diaphragm pump can suck the peanut, pickles, tomato slurry,
red sausage, chocolate, hops and syrup etc.
2. Air diaphragm pump can suck the paint, pigment, glue and
adhesive etc.
3. Air diaphragm pump can suck various glazed slurries of tile,
porcelain, brick and chinaware etc.
4. Air diaphragm pump can suck various grinding materials,
corrosive agent and clean the oil dirt etc.
5. Air diaphragm pump can suck various toxin and flammable or
volatility liquid etc.
Air Diaphragm Pump Advantages:
- Never deadstop (three-way pilot type air-distributing valve)
- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts imported from USA
- Easy maintenance
- Lube free
Air Diaphragm Pump Information:
- Name: Air Diaphragm Pump
- Model Type: RVP-73311-T
- Air diaphragm pump body: Aluminum
- Valve Seat: Stainless Steel 304
- Valve Ball: PTFE
- Diaphragm / Membrane: PTFE
- Connection: Flange or threaded
| Max Working Pressure | 120 psi(0.8Mpa, 8.4bar) |
| Max Flow Rate | 40 gpm(151lpm) |
| Max Reciprocating Speed | 276 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.16 in(4mm) |
| Max Air Consumption | 45scfm(22.5L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Net Weight | Aluminum air diaphragm pump 8.2kg |
Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case
(non-fumigation)
* Fast after-service
FAQ
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass
production.
Q3. Do you have any MOQ limit for air diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our air diaphragm pump.
