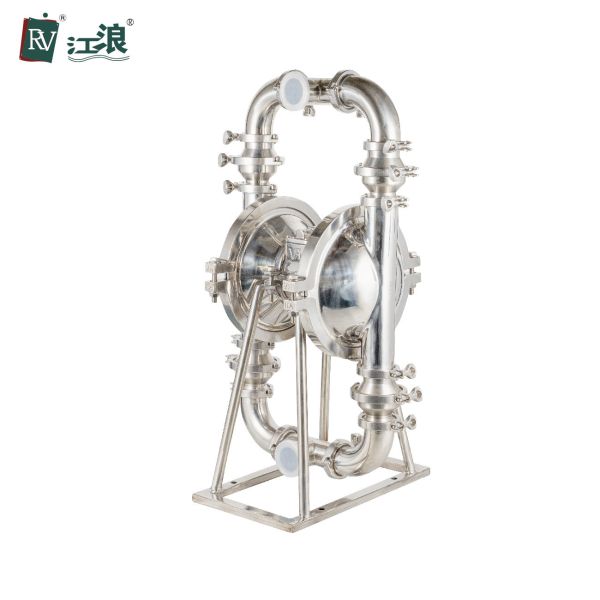

FDA Sanitary Air Operated Diaphragm Pump Food Grade 2 Inch

2 inch Food Grade Sanitary Air Operated Diaphragm Pump For Food Ingredients

KEY FEATURES

The diaphragm pumps from the FDA series are designed to efficiently and reliably pump foods, beverages, cosmetics and pharmaceutical products. The options installed in the factory enable you to adapt your RV FDA pump to your specific application requirements to thereby achieve a low-cost, smooth integration checked by the factory. The construction for rapid dismantling enables rapid inspection and maintenance - and therefore speedy recommissioning.

Advantages:

• design for better flow rates and greater reliability
• The compression clamp and band construction enables rapid cleaning, service and maintenance
• Optimised flow rate resulting from improved construction for better overall performance and less material shear.
• FDA compatibility since the pump is made from electropolished 316L stainless steel

Introduction of RV FDA Air Operated Diaphragm Pump Performance

1. No need to irrigate water, the suction height is up to 5m, the lift is up to 50m, and the outlet pressure is ≤0.5MPa.

2. The flow is spacious, the pass performance is good, and the maximum particle diameter is 6mm, which makes the pump wear little.

3. The head and flow rate can be adjusted by the pressure of the gas source (the pressure of the gas source is between 0.1 and 0.5 MPa).

4. Working environment temperature range: 5 ~ 65 ° C.

5. The FDA air operated diaphragm pump has no rotating parts and no shaft seal. The diaphragm separates the pumped medium from the moving parts of the pump. The delivered medium will not leak to the outsid

6. No need to use electricity, safe and reliable in flammable and explosive places.

7. Easy to use, reliable in operation, easy to open and close, only need to open and close the gas valve, even if there is no medium running or sudden stop due to unexpected circumstances, the pump will not be damaged.

8. Simple structure and less wearing parts. The FDA air operated diaphragm pump has a simple structure and is easy to install and maintain.

Jianglang Technology Co., Ltd  is a professional enterprise involved in manufacturing and marketing the high quality pneumatic diaphragm pumps, electric diaphragm pumps for a wide range customers.

Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.

Jianglang Technology Co., Ltd offers the latest technology in air-operated double-diaphragm (AODD) pumps.

AODD pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.

The main products are Pneumatic Diaphragm Pump, Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, FDA Sanitary Pump, Powder Pump, Control Valve, Ball Valve.

]

The pumps are widely used in Chemical Industry, Petrochemical, Paint and Coating Industry, Water Treatment, Mining, Food and Beverage, Pharmaceutical, Ceramic, Paper Industry, Electronics, Textile, Automobile, Nuclear Power and New Energy Industries.

Jianglang Technology Co., Ltd participated in setting norms and standard No.: SH/T3191-2017. The company awarded as High-Tech Enterprise and Credit Company, our technology teams has got strong support from Shanghai University. Jianglang Technology provide a host of auxiliary training support programs covering areas such as equipment maintenance, pump selection skills, fluid transfer solution, chemical compatibility guide and even system equipment support.

As a certified company, Jianglang's diaphragm pumps and valves design, manufacturing and service comply with ISO 9001:2015/ GB/T 19001-2016 standard.

Our diaphragm pump and valve have got QUALITY MANAGEMENT SYSTEM CERTIFICATE, BUREAU VERITAS (BV) for Marine & Offshore, CE Marking Certification, European Conformity,  Functional Safety Certificate (SIL), SGS, FDA (U.S. Food and Drug Administration Food Facility Registration),  Health & Safety Management System Certificate, ect.

For over 20 years, we've focused on the success of our customers. We do more than supply fluid handling equipments.
