Hydraulic Drive high pressure Mortar Grout Pump Machine nice
performance
Mortar Grout Pump Machine
Details of mortar grout pump machine:
1. The V-belt and a pair of gears transmit the motor's rotary
motion to the crankshaft. The connecting rod and crosshead allow to
reciprocate. The gearbox is closed, and splashes are used to
lubricate the moving parts.
2. The mortar is sent to the air by the suction valve through the
pump cylinder pressure, and the bleeder valve and pressure safety
device are installed on the air chamber.
3. The pump adopts the electrical automatic control safety device.
4. When the air chamber pressure exceeds the rated working
pressure, the main circuit main circuit is cut off through the
control circuit to automatically stop the motor.
Parameters of mortar grout pump machine:
| Model | SJ200 |
| Grouting (flowing) capacity | 12 m³/h |
| Working pressure | 0-10Mpa |
| Motor power | 22 kw |
| Noise power level | 110db(A) |
| Inlet diameter | 75mm |
| Outlet diameter | 38mm |
| Number of cylinder | 2 |
| Cylinder diameter | 110mm |
| Particle size | less than 5mm |
| Suction height | 2 meter |
| Dimension size | 1900*900*1640mm |
Working performance of mortar grout pump machine:
1.Because of full hydraulic pressure, small volume and light
weight, it can be used in a wide range of construction.
2.The adjustable performance is better: within the design range,
the pressure displacement of the pump can be arbitrarily adjusted.
When the pressure exceeds the allowable pressure, the relief valve
will automatically open and the cylinder and working cylinder will
stop working, thus playing a safe role.
3.In coal mines and other flammable and explosive construction
sites, the series of hydraulic grouting motors use explosion-proof
motors, but also can be used safely.
4.The anti-seismic pressure gauge is installed in the oil pressure
system, which can accurately reflect the working state of the pump.
5.This series of hydraulic grouting pumps can also be used as water
pumps, sewage pumps and mud pumps.
Characteristics and scope of application of mortar grout pump
machine:
1. In highway pavement maintenance, it is used for grouting filling
of cement pavement collapse.
2. In the pre-stressed component engineering, it is used for the
expansion of mortar injection.
3. In underwater engineering, the dam is strengthened.
4. It is used for grouting slope protection in national defense,
national defense engineering and mine tunnel construction.
5. It is used to transport fly ash slurry in thermal power plants.
6. In the chemical industry and paper industry, pulp raw materials
and wastes are transported.
7. In metallurgy, iron and steel and other industries, it is used
to maintain the grouting of blast furnaces and other equipment.

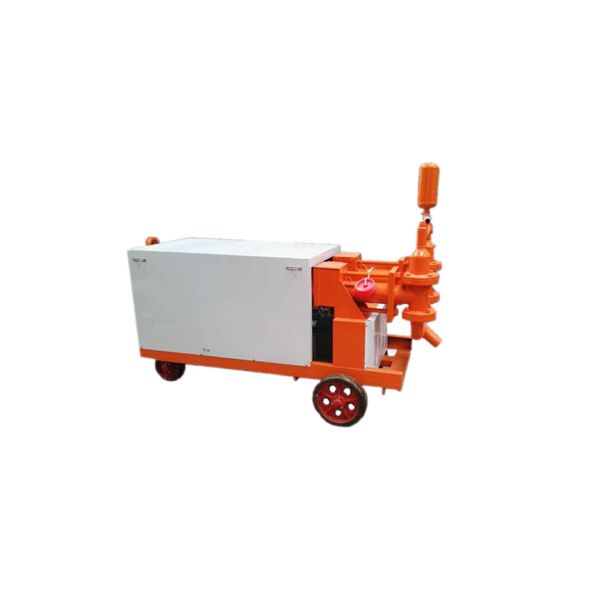

Picture of mortar grout pump machine:
