advanced technology diesel engine Wall Cement Spray Plaster Machine
compact
Wall Cement Spray Plaster Machine
Operation of Wall Cement Spray Plaster Machine:
1. When mortar is too thick and air compressor is running,
resistance increases, motor load increases, if abnormal sound or
pipe blockage occurs, it should be stopped immediately for
inspection and dredge the mortar pipe. Adjust the thickness of the
slurry and then feed to the hopper.
2. After a long time of work, if it is found that mortar flows out
of the transmission part or there is abnormal sound, it should be
stopped immediately for inspection and replacement of mechanical
seal, so as not to cause greater loss.
Parameters of Wall Cement Spray Plaster Machine:
| Model | TY-511 |
| Motor power | 7.5 KW |
| Conveying pressure | 3 Mpa |
| Conveying height | 10 m |
| Conveying flow | 3 m3/h |
| Hopper volume | 5 L |
| Matching air compressor | 3 m3/h |
| Matching nuzzle | 32 |
Spraying Material of Wall Cement Spray Plaster Machine:
1. Cement,mortar,putty powder;
2. Paint, latex paint, powder paint;
3. Waterproof material, fireproof material;
4. Thermal insulation, sound-absorbing material,etc.
Features of Wall Cement Spray Plaster Machine:
1. Screw pump,high working pressure, flow stability.
2. Pump and air compressor integration, easy to move
3. High efficiency,save material,low labor intensity.
4. Spray dry powder, mortar and ordinary mortar.
5. Uniform spraying, strong adhesion.
6. Easy to operate,work reliably,long service life.

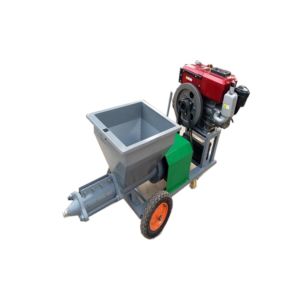

Pictures of Wall Cement Spray Plaster Machine:
