Underground crawler mini Drill Rigs For Sale with air compressor
Drill Rigs For Sale
Structure of Drill Rigs For Sale:
The drill rigs tool consists of drill pipe, ball tooth bit and
impactor. When drilling, use two drill pipe joints to drill. The
rotary air supply mechanism is composed of rotary motor, rotary
reducer and rotary air supply. The rotary reducer is a kind of
three - stage cylindrical gear closed heterotropic component, which
is automatically lubricated by screw oiler. The air supply rotary
is composed of a connecting body, a seal, a hollow spindle and a
drill pipe joint, etc., on which is provided with a pneumatic clamp
for connecting and unloading drill pipe. Lifting pressure
regulating mechanism is by lifting motor with the help of lifting
reducer, lifting chain, and the rotary mechanism and drilling tools
to achieve lifting action. In the closed chain system, a pressure
regulating cylinder and a moving pulley group are provided. In
normal operation, the piston rod of the pressure regulating
cylinder drives the pulley group to make the drilling tool realize
decompression drilling.
Parameters of Drill Rigs For Sale:
| Model | TY-100 |
| Max. propelling force | 9600 N |
| Rated speed | 1440 r/min |
| Drill pipe outer diameter | 50-60 mm |
| Drill rod length | 1025 mm |
| Weight | 470 kg |
| Machine size | 2280*440*500 mm |
Features of Drill Rigs For Sale:
1. Mechanical transmission, hydraulic feed, the output efficiency
of the whole machine is more than 95%;
2. Compact structure, reasonable connection design, can be divided
into motor, rotary, gear box winch, frame control mechanism four
parts, simple disassembly, convenient assembly;
3. Hydraulic chuck design, simple operation can achieve easy
conversion of 360 degrees drilling.

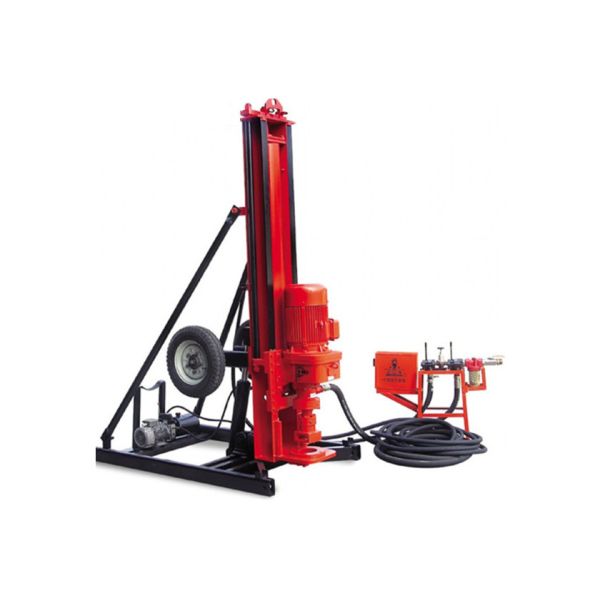

Pictures of Drill Rigs For Sale:
