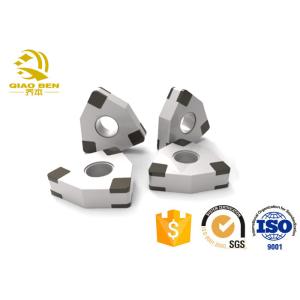

HRC58 - HRC65 CBN Diamond Turing Insert Solid Cbn Inserts WNGA080408

Best selling CBN diamond turing insert CBN inserts WNGA080408

overview
The best tool material among known materials that combines high hardness and high temperature resistance.
Twice high temperature and high pressure in the manufacturing process
1. Convert hexagonal boron nitride (HBN) into cubic boron nitride (CBN) under high temperature and high pressure.
2. The cubic boron nitride micro-nano crystal powder and the binder are synthesized into polycrystalline cubic boron nitride (PCBN) under high temperature and high pressure.
PCBN has strong chemical inertness and will not chemically react with ferrous metals at high temperatures
PCBN tool combination structure and life:
PCBN tools generally use negative rake angle, large relief angle and negative chamfering and grinding to enhance the strength and wear resistance of the cutting edge.
In addition, it is very important to accurately judge the PCBN life. If the tool wear is severe, the cutting force and cutting temperature increase, and it is difficult to control the size and surface integrity of the workpiece during cutting. It is recommended that regrinding should be carried out when the wear amount of the PCBN tool flank face is 0.3~0.6mm (the minimum value during fine turning).
Joeben's professional equipment and skills provide regrinding services.

Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.

Our advantage:

• 2. From row material to tool produdtion.
• 3. World top level prodution equipment and rich experience team

ATTACTION:

• 1.Make sure work piece and machine are stable and use a precision holder.
• 2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
• 3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.

                      ShenZhen Joeben Diamond Cutting Tools CO,.Ltd

         Joeben is a national high-tech enterprise that independently develops,produces and sells high precision cutting tools and their supporting .After several years of efforts and exploration ,it has been far ahead by its excellent quality and high-quality serivce in cutting tool industry .Diamond cutting tool,naturral diamond(ND)cutting tool,Polycrystaline diamond (PCD)cutting tool,polycrystalline cubic boron nirtide(PCBN)cutting tool,CBN cutting tool,PCD polishiing cutter,chamfering cutter,milling cutte,high optical cutter,acrylic diamond polishing cutter and high-performance metal cutting tool,etc.are our major products,which have been mainly applied in the processing of high-end brand mobile phone’s shell,such as apple and Samsung,the indusrty of taransportation components and.Our company is also expert in the polishing processing of aluminum alloy,acrylic,plastic and light guide plate,etc..All of our products have passde ISO9001 quality system certification.

The company began to design and develop CNC machine tools in 2017and has met its own processing needs.

At present, the company has 80 employees, including 15 engineering design team, 50 production staff and 10 quality inspection staff.

Our company's vision is to build a world-class quality cutting tool brand.
