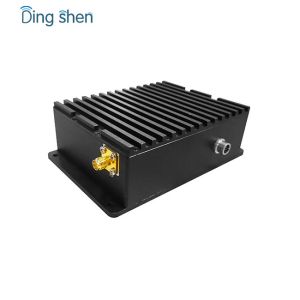

    Robot COFDM HD Video Transmitter Surveillance EOD 300MHz

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-EOD1
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 1000PCS per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Robot COFDM HD Video Transmitter Surveillance EOD 300MHz

    Other Surveillance Products COFDM Robot Transmitter

    This video transmitter is specially designed for robot and unmanned vehicle use.

    Customized project is welcome!

    COFDM Technique Advantages

    1. Strong interference
    2. Anti-multipath fading
    3. LOS & NLOS operation

    Warranty

    1. Twelve months free warranty for equipment
    2. Three months for components
    3. Replacement parts will be charged after one year

    Other Surveillance Products COFDM Robot Transmitter


    Other Surveillance Products COFDM Robot Transmitter
    Frequency300-4400MHz(optional)
    RF output Power1-2 Watt (adjustable 30dBm-33dBm)
    VoltageDC12V/ 1.3A
    ModulationCOFDM
    ConstellationQPSK,16QAM
    Bandwidth2/2.5/4/8MHz(adjustable)
    FEC1/2,2/3,3/4,5/6,7/8
    Guard Interval1/32,1/16,1/8,1/4
    Video Input1 line PAL/NTSC analog video
    Audio Inputstereo left and right channels
    AV InterfaceBNC/RCA
    Video CompressionH.264
    Data encryptionAES / ALLTECH Basic scrambling
    FlatnessFull band≤2dB, 8MHz≤0.5dB
    Carrier2K, 8K
    Resolutionstandard 720P
    RF InterfaceN(F)
    Video FormatPAL/NTSC(self-adaption)
    Work environment-30~70℃
    Distance500m-1km max NLOS on ground (customize for longer range)

    Over 20kms LOS distance on UAV (if over 300m altitude)

    Size100*100*50mm
    Weight900g(net weight)

    Parameters of receiver to Other Surveillance Products COFDM Robot Transmitter


    Frequency300-4400MHz(optional)
    Receive sensitivity< -105dBm
    RF InterfaceN(F)
    ModulationCOFDM
    Power supplyAC220V/DC12V
    Bandwidth2/2.5/4/8MHz(adjustable)
    ConstellationQPSK,16QAM
    FEC1/2,2/3,3/4,5/6,7/8
    Guard Interval1/32,1/16,1/8,1/4
    Video Output1 line PAL/NTSC analog video
    AV interfaceRCA
    RevolutionStandard 720P
    Lines of horizontal625 or 525 Line
    Audio Outputstereo left and right channels
    Data encryptionAES/ ALLTECH Basic scrambling
    Work environment-30~70℃
    Size430*310*65mm
    Weight3.5kg

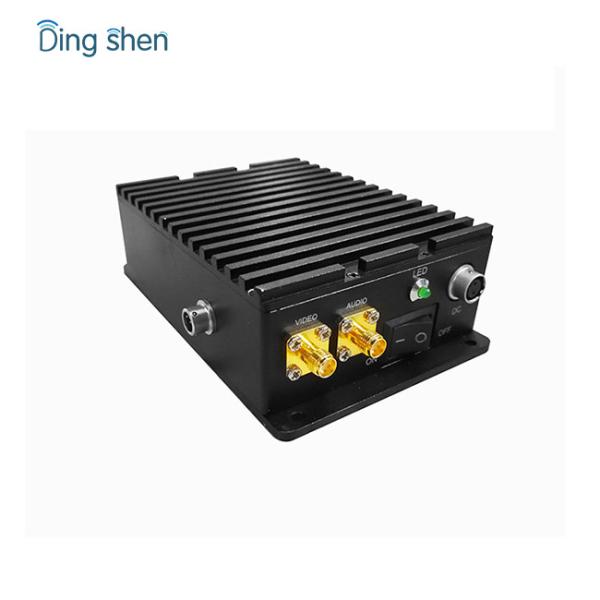

    Quality Robot COFDM HD Video Transmitter Surveillance EOD 300MHz for sale
