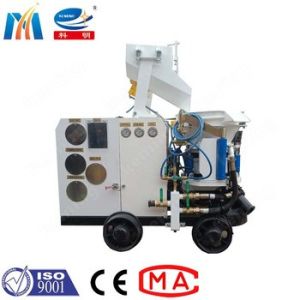

    Pneumatic Concrete Spraying Shotcrete Machine 240m Small Remote With Dust Cover

    Pneumatic conveying machine Small Remote Concrete Spraying Machine with dust cover

    Small Remote Concrete Spraying Machine Introduction:

    1. Mining small long-distance concrete sprayer is a special equipment for pneumatic conveying of concrete in coal mine construction.

    2. The machine has a dust cover, which can effectively prevent dust from being sprayed; it has a sealing lubrication system, a hydraulic automatic pressing system, and an automatic adding system for quick-setting agents, which can improve the service life of seals and reduce dust.

    3. The overturning of the hopper seat and the lifting of the distributor are hydraulically driven, reducing the maintenance workload.

    4. Mechanically hidden turning plate, adjust the size of the hopper discharge opening, the shotcrete volume can be adjusted steplessly from 3 to 5 squares according to the needs, and the accelerator can be added automatically.


    Small Remote Concrete Spraying Machine Features:


    1. Mining small long-distance concrete sprayer is a special equipment for pneumatic conveying of concrete in coal mine construction.

    2. The machine has a dust cover, which can effectively prevent dust from being sprayed; it has a sealing lubrication system, a hydraulic automatic pressing system, and an automatic adding system for quick-setting agents, which can improve the service life of seals and reduce dust.

    3. The overturning of the hopper seat and the lifting of the distributor are hydraulically driven, reducing the maintenance workload.

    4. Mechanically hidden turning plate, adjust the size of the hopper discharge opening, the shotcrete volume can be adjusted steplessly from 3 to 5 squares according to the needs, and the accelerator can be added automatically.

    Small Remote Concrete Spraying Machine Technical Parameters:

    Basic parametersUnitParameters
    Max. capacitym3/h2-6
    Max. delivery distancem240
    Max aggregate sizemm15
    Hose IDmm51/57
    PressureMpa≥0.6
    Air consumptionm3/min5-15
    Feeding heightm1.15
    REV. of rotorr/min11
    Powerkw7.5
    VoltageV380/660V or 660/1140V
    Dimension(L*W*H)

    mm

    1800×784×1712
    Weightkg1110
