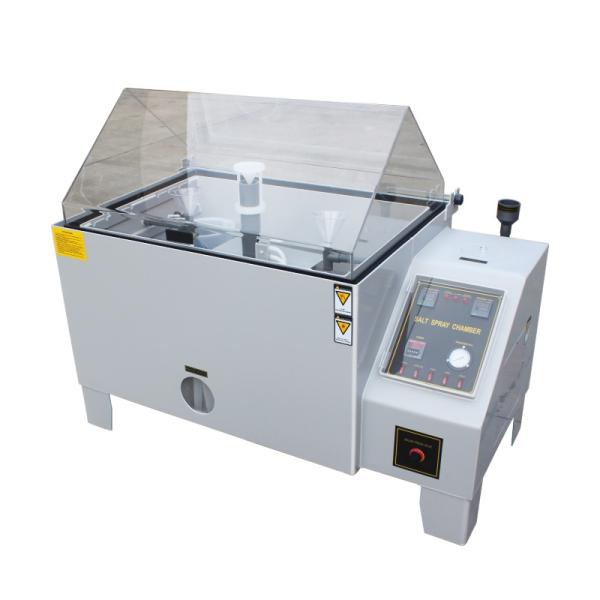

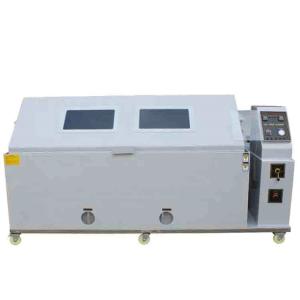

Corrosion Resistant Salt Spray Test Chamber 86Kpa-106Kpa Antirust
Salt spray test system has the following characteristics:
1. Controller: Controller imported from Korea "TEMI-880" 16-bit
true color touch screen, the program group of 1,20 groups, the
total number of cycles 1200 times.
2, the temperature sensor: anti-corrosion platinum resistance
PT100Ω / MV
3, heating method: using titanium high-speed heating heater,
multi-point layout, good stability and uniformity
4, spray system: tower spray system, advanced quartz nozzle, no
crystallization for a long time, fog particles are evenly
distributed
5, salt collection: in line with the national standard funnel and
standard measuring cylinder, adjustable settlement controllable
6, bipolar decompression, to ensure that the spray pressure
stability.
Features:
1. Adopt automatically add water system, can watered by itself
while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping
naturally, no Na-Cl crystallized salt.
3. Double over-heat protection devise and alarm when water short
storage to ensure use safety.
4. Digitally temperature controller, PID controlled.
5. Tapered Spray tower, even mist dropping.
6.Applicable fields including automobile parts, aviation equipment,
photographic equipment, building materials, electricity,
electrical and electronic systems.
7. Comply with ASTM B-287, JIS D-0205, H-8681, Z-2371, K-5400,etc.
specification:
Volume(L) | 108 | 270 | 480 | customi-zable |
Internal Size
W×H×W(mm) | 600×400×450 | 900×500×600 | 1200×500×800 |
External Size
W×H×W(mm) | 1150×1090×672 | 1450×1200×842 | 2080×1285×1240 |
Performance Index | Temperature Range | LaboratoryTemperature Range :RT~50℃
Saturated air barrelTemperature Range :RT~63℃ |
Temperature Deviation | ±1.0℃ |
Temperature Uniformity | ≤2.0℃ |
Temperature Fluctuation | ±0.5℃ |
Heating Rate | Test Room RT→+50℃≤60 min
Pressure Barrel RT→+63℃≤60 min |
Salt fog deposition | 1~2ml/80 square meter (At least 16 hours were collected and
averaged) |
Spray Pressure | 70~170Kpa |
Spraying Mode | Continuous spray |
Test time | 1~999(S,M,H)adjustable |
PH | 6.5~7.2 3.0~3.2 |
Main Part | Control System | temperature controller |
PT100 thermocouple (armor), PID control |
Spraying System | The Nozzle is made of special glass material, the size and angle of
spray can be controlled |
operate manual spray or set automatic spray according to program |
Structural Features | Material Enclosure | Imported PVC polyethylene board is adopted |
Medicament refill cylinder | hidden type supplementary water gauge |
Pressurized air drum | SUS304# stainless steel high-pressure barrel |
Test Rack | The plane indexing frame can be used to adjust the Angle of fog
falling or being foggy at any direction |
Cover Material | imported European acrylic board |
Spray Tower | air atomizing nozzle, height can be adjusted |
Spray volume collector | Cone funnel with diameter of 100mm |
Heating System | Titanium alloy heat pipe, steam heating, P.I.D. control heating |
Brine Tank | Made of PVC board |
Saturated air barrel | SUS304 Stainless |
Drain line | acid and alkali resistant PVC piping |
Heater | Titanium alloy armored electric heating tube (test chamber bottom
heating)
SUS316# stainless steel armoured heating tube (saturation barrel) |
Standard Fittings | 1 set of nozzles, 2 fog collecting and measuring cylinders, 2 fog
collecting collectors, etc. |
Safty Device | Leakage, short circuit, motor overheating, overload, over current
protection |
Supply Voltage | AC220V 50Hz |
Environment Requirement | Temperature 5.0~+30.0℃, Humidity≤85%RH, Air Pressure 86Kpa~106Kpa |
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
9.ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
