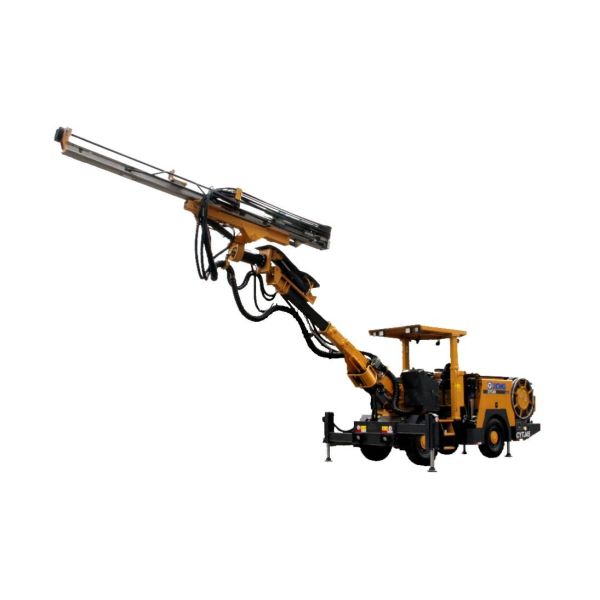

Single arm excavation drilling rig
Product introduction of drilling rig
CYTJ45 is mainly suitable for the excavation construction of
various underground roadways and culverts such as metal mines,
hydropower, etc. It is also suitable for drilling blasting holes
and drilling bolt holes in narrow ore veins and tailings mining,
small roadways, etc. The equipment adopts hydraulic rock drilling
system with advanced system, fast rock drilling speed and high work
efficiency; the whole machine is compact in structure, flexible in
maneuverability, convenient for operation in narrow spaces, and the
maximum operating coverage area: 35㎡.
Main technical highlights of the product
Rock drill
The imported rock drill has the characteristics of super
anti-bending ability, high drilling speed and low drilling tool
loss, which effectively improves the adaptability of tunnel edge
drilling.
thruster
Light aluminum alloy beam, high-efficiency bending, torsion and
fatigue resistance, long service life. The unique single-layer
arrangement of the hose reel, combined with the reliable pipe clamp
structure, has good hose tensioning performance, effectively
prolonging the life of the hose and reducing the maintenance
intensity;
Drill boom
The drill arm is kept in parallel in all directions, and the
positioning is fast and accurate; the square structure has high
strength and good shock absorption performance;
Drilling system
It has the functions of anti-jamming, anti-running and automatic
retraction, which can effectively improve the drilling efficiency
and reduce the loss of drilling tools;
Hydraulic system
The auxiliary action of the outrigger and ceiling light adopts the
electronic control design, the pipeline is simplified, and the
maintenance is easy;
Electrical System
The electrical components of international famous brands such as
Schneider and Siemens are selected, which have high reliability and
long service life; they are equipped with protection and alarm
functions such as ground fault protection, phase sequence
protection, motor overload protection and engine fault alarm.
Product data of drilling rig
Sequence Number | Configuration | PCS |
| 1 | Engine | 1 |
| 2 | Front axle | 1 |
| 3 | Rear axle | 1 |
| 4 | Hydraulic rock drill | 1 |
| 5 | Three-phase asynchronous motor | 1 |
| 6 | Speed changing box | 1 |
| 7 | Water pump | 1 |
| 8 | Impact pump | 1 |
| 9 | Positioning pump | 1 |
| 10 | Rotary pump | 1 |
| 11 | Double gear pump | 1 |
| 12 | Cable reel | 1 |
