Flat / Round Wire Automatic Transformer Winding Machine With PLC

Small Coil Máquina de bobinado Automatic Transformer Winding Machine With PLC

Description of automatic coil winding machine ZPX250

Automatic coil winding machine ZPX250 is a special equipment for winding oil immersed transformer wire coils and other similar products. The automatic coil winding machine can wind not only round wire but also flat wire. With 3kw winding motor, the automatic coil winding machine can provide big pulling force for winding copper or aluminium wire. The wire guide is driven by a 750w servo motor, which guarantees the precision of laying wire. The parameters are input through a touch screen. It is very easy to operate the machine.

Main components of automatic coil winding machine ZPX250

• Main frame
• Winding unit
• Wire guide
• Electronic cabinet
• Pneumatic system
• Foot pedal
• PLC control system
• Touch screen

Technical parameters of automatic coil winding machine ZPX250

Typical standard specifications of automatic coil winding machine ZPX250 are shown below, however, these can be easily modified as requested.

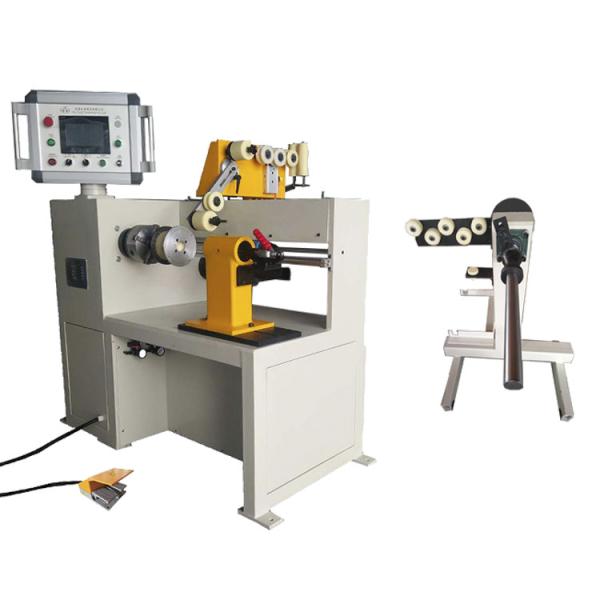

Fig 1: Automatic coil winding machine ZPX250's front view

Fig 2: Automatic coil winding machine ZPX250's wire guide
