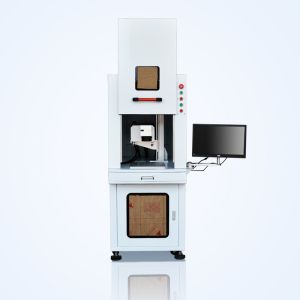

Enclosed UV laser engraving machine safety UV laser marking machine
automatic UV printing machine for PCB boards
Application and market
UV Laser Marking Machine is mainly applied in ceramic cutting,
scribing and
marking, and material micromachining, laser rapid prototyping, FPCB
cutting,
millipore(d≤10μm) punching, flexible PCB marking and scribing, removal of
metal and non-metal coating, processing of silicon wafers'
millipores and dead
holes, the marking content can be text, barcodes and
graphics/pictures on most of
the materials
Specification
| Model | QA-UV5 |
| Wavelength | 355nm |
| Average power | 3W / 5W / 7W |
| Pulse per second | 10kHz~100kHz |
| Pulse width | 10~25 ns |
| Pulse stability | ≤±2%(RMS) |
| Beamdirectivity | ≤10μrad |
| Beam quality | M2<1.2 |
| Beammodel | base model(TEM00) |
| Polarization | level |
| Polarization character | P component Linear polarized light |
| Cooling mode | Air cooling |
| Warm-up time | 3~5mins |
| Power supply | 100~240V·AC,50~60Hz |
| Environmental conditions | Temperature 15°C~30°C/ Humidity<85%(Non-condensing) |
| Laser size | 23×20×13 cm |
| Power supply size | 42×36×13 cm |
Product Description
Our machine is worked by focusing ultraviolet laser onto a vat of photopolymer
resin. With the help of CAM or CAD software, UV laser is used to
draw a pre-programmed design or shape on surface of the
photopolymer vat. Photo -polymers are sensitive to ultraviolet
light, so the resin is photochemically solidified and forms a
single layer of desired 3D object. This process is repeated for
each layer of the design until completed.
Features
1. Imported ball screw and linear guide rail guarantee high
printing accuracy 0.01m;
2. Quick printing speed and batch production: 42 full-size shoe
sole models printed in only 29 hours; 3. Complex structure model
can be printed precisely and delicately;
4. Many photopolymer resin choices, like rigidity, detail, color,
clarity and temperature tolerance;
5. Imported quality device: German galvanometer scanner & US laser
device;
6. Variable light spot: bigger lighting area, higher printing
speed;7. KINGS owned control software for simple & visual
operation.
UV Laser Source:
3w/5w/8w/10w
laser beam is perfect and long lifetime
500000 hours lifetime
