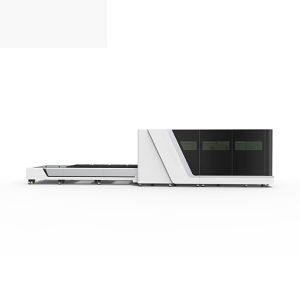

CNC Metal Fiber Laser Cutting Machine Water Cooling Automatic 1500w

Water Cooling Automatic CNC Metal Fiber Laser Cutting Machine 1500w

EFC3015 CNC laser cutting machine is a new type of laser cutting machine, the structure has high rigidity, good stability, high cutting efficiency and high machining precision. The products are of high flexibility, safety, easy operation and low energy consumption. It belongs to environmental protection product, the processed plate size: 3000 * 1500mm; with the safety shield and the shuttle table. The overall layout is compact and reasonable.

Specifcation

	Item	Specification		Unit
1	Sheet Cutting Size	3000×1500		mm
2	Stroke of X Axis	3000		mm
3	Stroke of Y Axis	1500		mm
4	Stroke of Z Axis	280		mm
5	Max. Feeding Speed	140		m/min
6	Cutting Accuracy	±0.1		mm/m
7	Rated Laser Power	2000		W
8	Cutting Thickness (when the required cutting condition is met)	Carbon Steel	0.5-16	mm
		Stainless Steel	0.5-10	mm
		Aluminum	0.5-6	mm
9	Stable Cutting Thickness	Carbon Steel	12	Mm
		Stainless Steel	5	Mm
		Aluminum	5	Mm
10	Input Power	38		kVA
11	Shuttle table exchange time	10		S
12	Machine Weight	8		t
