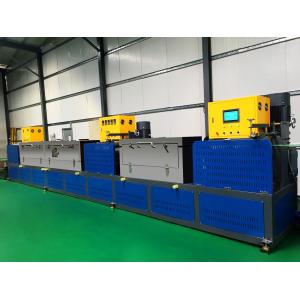

Factory customized 9-32mm PET plastic strapping production line PET
strapping equipment with 100-600/H extrusion output
PRODUCT DESCRIPTION
1. Extrusion process--------PET tape making machine uses a special screw for extruder, which is
evenly extruded by heating and melting.
2. Cooling and solidification------- The extruded PET tape embryo is then cooled and solidified using a
cooling water tank or other refrigerator to ensure that the
material maintains its shape and characteristics.
3. Stretching and orientation------- PET tape making machines usually include stretching and
orientation sections to improve the tensile strength, flexibility
and overall performance of the PET tape. This process aligns the
molecules in the PET material to enhance its mechanical properties.
4. Embossed--------PET strap making machines may have an embossing section that
creates a textured or patterned surface on the PET strap to improve
grip and aesthetics.
5.Winding and Cutting------After producing the PET strap, the machine typically includes a
winding and cutting mechanism to roll the strap into coils of the
desired length for packaging and distribution.
6.Adjustable Parameters------ PET strap making machines typically offer PLC adjustable
parameters such as strap width, thickness, color, and tension to
customize the strap to specific requirements.
PET Strap Production Line Machine List
| Item | Quantity |
| Lifting mixing drying system and screw feeding system | 1 set |
| 450 type dehumidifier and drying crystallization tank | 1 set |
| single screw extruder | 1 set |
| high-power screen changer | 1 set |
| metering pump with independent speed regulation system | 1 set |
| Special mould for PET strap band | 1 set |
| Cooling water tank | 1 set |
| The first five-roller tractor | 1 set |
| Stretching oven | 1 set |
| The second five-roller tractor | 1 set |
| Embossing machine | 1 set |
| The third five-roller tractor | 1 set |
| Cooling sizing system | 1 set |
| The fourth three-roller tractor | 1 set |
| Single station semi-automatic winding machine | 1 set |
PET and PP strap making machine introduction
- 1.PET packing strap is widely used in packing applications, it can
replaced the steel strap for packing application, as its good
tensile strength, flexible, low prolongation rate, good performance
of high temperature resistant, non-rustiness, and low use-cost,
etc, it is used in steel, construction material, chemical fiber,
paper making, tobacco, agriculture, election, etc.
2.This PET plastic steel strip extrusion equipment is an environmentally friendly and intelligent equipment with the
advantages of high output, low power consumption, simple operation
and long service life.
PET plastic steel belt production line features:
Extrusion process-----PET belt making machine uses a special screw
for extruder, which is evenly extruded by heating and melting.
Cooling and solidification----The extruded PET belt embryo is then
cooled and solidified using a cooling water tank or other
refrigerator to ensure that the material maintains its shape and
characteristics.
Stretching and orientation----PET belt making machines usually
include stretching and orientation parts to improve the tensile
strength, flexibility and overall performance of the PET belt. This
process aligns the molecules in the PET material to enhance its
mechanical properties.
About size:
PET is Length 4000mm, PP 2000mm.
It is stainless steel materials.
The water is heated by water tank heating unit
The haul off rollers is five rollers, working to take PET or PP
strap materials out of water tank
Features:
1. PET plastic steel strip is a kind of packaging material with
good tensile strength and excellent fusion performance.
2. It has a very good tightening and holding capacity, and does not
relax for a long time after packing, so as to ensure that the goods
have excellent impact resistance in long-distance transportation.
3. It can be packed directly with PET plastic steel belt, and the
goods will not be damaged or corroded.
4. Good flexibility, convenient and safe operation. PET plastic
steel belt has no sharp edge of steel belt, which will not scratch
the package or hurt your hands. No special tools are needed when
cutting. Even if the binding is tighter, people will not be hurt
when cutting.
5. Excellent weather resistance, between - 50 ºC - 100 ºC, keep
good stability.
6. Beautiful appearance, environmental protection, recyclable.
7. Good economic benefits. The density of PET plastic steel strip
is only 1 / 6 of that of steel strip, and the price per unit length
is relatively low. The length of one ton of plastic steel strip is
equivalent to that of six tons of steel strip, and the cost per
meter is lower than that of steel strip.
FQA:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt
equipment?
A: Different models have different extrusion capacities, with
capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt
equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt
equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel
belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
