High Hardness HRA 92.5 Tungsten Carbide Slitting Blades K15 Carbide Circular Blades

    Buy cheap High Hardness HRA 92.5 Tungsten Carbide Slitting Blades K15 Carbide Circular Blades from wholesalers

    Buy cheap High Hardness HRA 92.5 Tungsten Carbide Slitting Blades K15 Carbide Circular Blades from wholesalers
    • Buy cheap High Hardness HRA 92.5 Tungsten Carbide Slitting Blades K15 Carbide Circular Blades from wholesalers
    • Buy cheap High Hardness HRA 92.5 Tungsten Carbide Slitting Blades K15 Carbide Circular Blades from wholesalers
    • Buy cheap High Hardness HRA 92.5 Tungsten Carbide Slitting Blades K15 Carbide Circular Blades from wholesalers

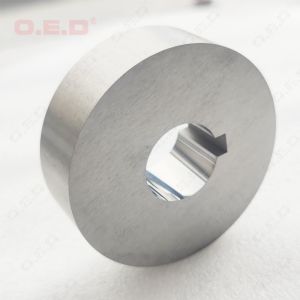

    High Hardness HRA 92.5 Tungsten Carbide Slitting Blades K15 Carbide Circular Blades

    Ask Lasest Price
    Brand Name : OED or OEM
    Model Number : Slitting blades
    Certification : ISO 9001: 2015
    Price : 15-30USD/PC, special tools can be negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000pcs per month
    Delivery Time : Standard products in one week, special tools in 45 days
    • Product Details
    • Company Profile

    High Hardness HRA 92.5 Tungsten Carbide Slitting Blades K15 Carbide Circular Blades

    High Hardness HRA 92.5 Tungsten Carbide Slitting Blades K15 Carbide Circular Blades​


    With ultra-fine grain size, the hardness of our K15 carbide slitting blades could be up to HRA 93.3 Max. Tac/Tic included to get better performance of the cutting blades.

    General Dimensions:
    Outer diameter 35mm
    Thickness 15mm
    Perpendicularity 0.05mm
    Circularity 0.05mm

    Surface roughness Ra 0.8, Ground


    General Information of K15 Grade

    Grain size: Ultra-Fine

    Cobalt: 6%

    Hardness: HRA 92.5

    T.R.S: 2100


    Features:

    Good Wear Resistance
    Strong Impact Resistance performance
    Better Surface Finish

    High hardness

    Kee all sharp edges for the cutting edges and remove sharp edges for the inner diameter.



    Carbide Grade OK10F

    Wear part gradesGradeISO GradeCoDensity

    Hardness

    HRA

    T.R.S.Grain size
    OK01UFK01-K053.0015.1093.502000Ultra Fine
    OK10FK10-K206.0014.9092.002000Middle/Fine
    OK30K308.0014.8091.502200Fine
    OK40FK4010.0014.4591.903400Middle/Fine
    OK50FK5012.0014.2590.003500Fine
    OG10G108.0014.7091.002100Middle
    OG20G2011.0014.4089.002400Middle
    OG30G3015.0014.2086.702800Middle
    OG40G4020.0013.6585.003000Middle
    OG50G5025.0013.2084.203200Middle



    we specialized in producing Punches, Ejector Pins and sleeves, Die Buttons, Bushes, Ejector Punches, Drill Rods, Ball Cages, Springs,Block Sets of many different standards
