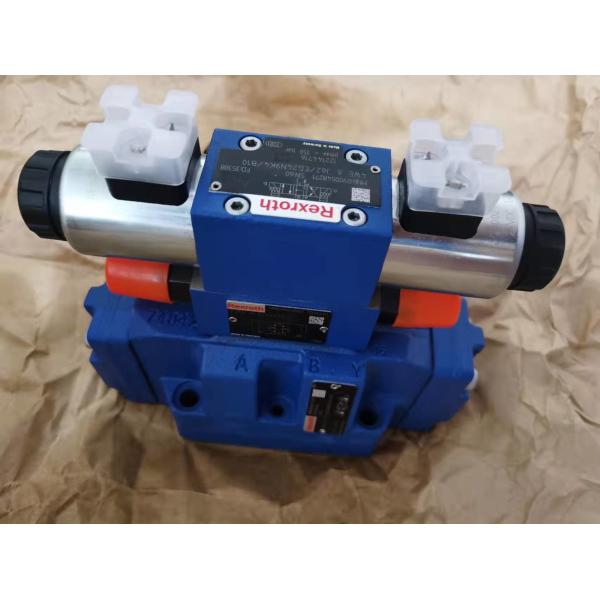

R900952631 4WEH16L7X/6EG24N9ETK4/B10 Rexroth 4WEH16L Directional Spool Valve

Name: R900952631 4WEH16L7X6EG24N9ETK4B10 Rexroth 4WEH16L Directional Spool Valve
Brand: Rexroth
Price: 1 USD

Ask Lasest Price
Brand Name :	Rexroth
Model Number :	R900952631 4WEH16L7X/6EG24N9ETK4/B10
Price :	On request
Payment Terms :	T/T, Western Union
Supply Ability :	100PCS per month
Delivery Time :	7-10days

Add to Cart

Product Details
Company Profile

R900952631 4WEH16L7X/6EG24N9ETK4/B10 Rexroth 4WEH16L Directional Spool Valve

Type 4WEH Directional Spool Valves, Pilot Operated, With electro-hydraulic Actuation

Size 10, 16, 25 (WEH22), 25 (WEH25), 32
Component series 4X, 7X, 6X
Maximum operating pressure 280 bar
Maximum flow 1100 l/min

Features:

Types of actuation (internal or external pilot control): Electro-hydraulic (type WEH)
For subplate mounting
Porting pattern according toISO 4401
4/3-, 4/2- or 3/2-way version
Spring or pressure centering, spring end position or hydraulic end position
Wet-pin DC or AC solenoids, optional
Electrical connection as individual or central connection
Optional versions:
- Manual override
- Switching time adjustment
- Preload valve in channel P of the main valve
- Stroke setting and/or spool position monitoring

Type code

01	02	03	04	05	06	07		08	09	10	11	12	13	14	15		16	17	18	19	20	21	22
		WEH					/								K4	/							*

01	up to 280 bar	no code
02	3-way version	3
02	4-way version	4
Types of actuation
03	electro-hydraulic	WEH
Size
04	NG10	10
	NG16	16
	NG25 (version "WEH 22")	22
	NG25 (version "WEH 25")	25
	Size 32	32
Spool return in the main valve
05	by means of springs	no code
05	hydraulic ¹⁾	H
06	Symbols; for the possible version, see "Symbols/Circuit diagrams"
07	Component series 40 … 49 (40 … 49: unchanged installation and connection dimension) – NG10	4X
	Component series 60 … 69 (60 … 69: unchanged installation and connection dimension) – NG25 ("WEH 25") and NG32	6X
	Component series 70 … 79 (70 … 79: unchanged installation and connection dimension) – NG16 (from series 72) andNG25 ("WEH 22")	7X
Control spool return in the pilot control valve with 2 spool positions and 2 solenoids (only possible with symbols C, D, K, Z and hydraulic control spool return in the main valve)
08	With spring return	no code
	Without spring return	O
	Without spring return with detent ²⁾	OF
Pilot control valve ²⁾
09	High-power valve	6E
10	Direct voltage 24 V ²⁾	G24
	Alternating voltage 230 V, 50/60 Hz ²⁾	W230
	For other voltages, frequencies and electric data, see data sheet of high-power valve
11	Without manual override	no code
	With manual override	N
	With concealed manual override	N9
Pilot oil flow
12	External pilot oil supply, external pilot oil return ³⁾	no code
	Internal pilot oil supply, external pilot oil return ^{3; 4)}	E
	Pilot oil supply internal, pilot oil return internal ⁴⁾	ET
	External pilot oil supply, internal pilot oil return ³⁾	T
	version “ET” and “T” with 3-spool position valve, pressure-centered, only possible if p_pilot ≥ 2 x p_tank + p_{pilot min}!)
Switching time adjustment
13	without switching time adjustment	no code
	Switching time adjustment as supply control	S
	Switching time adjustment as discharge control	S2
Corrosion resistance
14	None (valve housing primed)	no code
14	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
Electrical connection ²⁾
15	Individual connection
	Without mating connector; connector DIN EN 175301-803	K4 ⁶⁾
	For further electrical connections, see data sheet 23178 and 08010
Spool position monitoring
16	Without position switch	no code
	Monitored spool position "a"	QMAG24
	Monitored spool position "b"	QMBG24
	Monitored spool position "a" and "b"	QMABG24
	Monitored rest position	QM0G24
Stroke setting
17	For ordering code, see stroke setting
Throttle insert ²⁾
18	Without throttle insert	no code
	Throttle Ø 0.8 mm	B08
	Throttle Ø 1.0 mm	B10
	Throttle Ø 1.2 mm	B12
	Throttle Ø 1.5 mm	B15
	Throttle Ø 2.0 mm	B20
	Throttle Ø 2.5 mm	B25
preload valve (not for NG10) ²⁾
19	without preload valve	no code
19	with preload valve (p_ö = 4.5 bar)	P4,5
20	without pressure reducing valve	no code
20	with pressure reducing valve	D3 ⁵⁾
Seal material
21	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
22	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Type 4WEH16L Serie Directional Spool Valves, Pilot Operated, With electro-hydraulic Actuation on Sale, Short lead time, Best price!!!

R900923888	4WEH16L7X/6AG24NETK4
R900923873	4WEH16L7X/6AG24NK4/11V
R901184955	4WEH16L7X/6EG125N9ETK4/B10
R900933265	4WEH16L7X/6EG125N9ETS2K4
R901017946	4WEH16L7X/6EG205N9K4/B10
R901291706	4WEH16L7X/6EG24ETK4/B10
R978914235	4WEH16L7X/6EG24N9EDA
R900930859	4WEH16L7X/6EG24N9EK4
R900934317	4WEH16L7X/6EG24N9EK4/10
R901170879	4WEH16L7X/6EG24N9EK4/10B08
R900246868	4WEH16L7X/6EG24N9EK4/B08
R901150485	4WEH16L7X/6EG24N9EK4/B08P4,5
R901332248	4WEH16L7X/6EG24N9EK4/B10
R901119793	4WEH16L7X/6EG24N9EK4/B10D3
R901355639	4WEH16L7X/6EG24N9EK4/B15
R901159670	4WEH16L7X/6EG24N9ES2DL/10B10
R987144193	4WEH16L7X/6EG24N9ES2K4
R978020880	4WEH16L7X/6EG24N9ES2K4
R900617871	4WEH16L7X/6EG24N9ES2K4/10B08
R900954345	4WEH16L7X/6EG24N9ES2K4/10B10
R900755284	4WEH16L7X/6EG24N9ES2K4/B08
R900941793	4WEH16L7X/6EG24N9ES2K4/B10
R901118928	4WEH16L7X/6EG24N9ES2K4/B10D3
R901320870	4WEH16L7X/6EG24N9ES2K4/B10V
R901133280	4WEH16L7X/6EG24N9ES2K4/B15
R901018996	4WEH16L7X/6EG24N9ESDJL/B10
R900755801	4WEH16L7X/6EG24N9ESDJL1/B10
R900948690	4WEH16L7X/6EG24N9ESK4/10B10
R978006697	4WEH16L7X/6EG24N9ETDAL
R900924643	4WEH16L7X/6EG24N9ETK4
R900961508	4WEH16L7X/6EG24N9ETK4/10B10
R901305826	4WEH16L7X/6EG24N9ETK4/12B10
R900711896	4WEH16L7X/6EG24N9ETK4/B08
R900952631	4WEH16L7X/6EG24N9ETK4/B10
R900759798	4WEH16L7X/6EG24N9ETK4/B10D3
R900758815	4WEH16L7X/6EG24N9ETK4/B10P4,5
R900744334	4WEH16L7X/6EG24N9ETK4/B10V
R901364813	4WEH16L7X/6EG24N9ETK4/B12
R900748284	4WEH16L7X/6EG24N9ETS2DJL/B10
R900713835	4WEH16L7X/6EG24N9ETS2K4/B08
R900712203	4WEH16L7X/6EG24N9ETS2K4/B10
R901088780	4WEH16L7X/6EG24N9ETS2K4/B10P4,5
R900934944	4WEH16L7X/6EG24N9ETSK4
R901397287	4WEH16L7X/6EG24N9ETSK4/B10
R901034404	4WEH16L7X/6EG24N9ETSK4/B10P4,5
R900977794	4WEH16L7X/6EG24N9ETSK4/B10V
R900927835	4WEH16L7X/6EG24N9K4
R987013149	4WEH16L7X/6EG24N9K4/B08
R900965805	4WEH16L7X/6EG24N9K4/B10
R978917507	4WEH16L7X/6EG24N9K4/V
R901025836	4WEH16L7X/6EG24N9S2DL/B10
R900955915	4WEH16L7X/6EG24N9S2K4
R901170882	4WEH16L7X/6EG24N9S2K4/B10D3
R901548809	4WEH16L7X/6EG24N9S2K4/B15
R901020097	4WEH16L7X/6EG24N9TDJL
R900926210	4WEH16L7X/6EG24N9TK4
R900965575	4WEH16L7X/6EG24N9TK4/B08
R901395041	4WEH16L7X/6EG24N9TK4/B10P4,5
R978910724	4WEH16L7X/6EG24N9TK4/V
R901005178	4WEH16L7X/6EG24N9TS2K4
R900934457	4WEH16L7X/6EG24NES2DL/10
R901249226	4WEH16L7X/6EG24NES2DL/10B10
R901132104	4WEH16L7X/6EG24NES2DL/B10
R901216194	4WEH16L7X/6EG24NES2K4/10B10
R901137929	4WEH16L7X/6EG24NETDL/B10
R901146816	4WEH16L7X/6EG24NETK4/B10
R901199040	4WEH16L7X/6EG24NTK4/B10D3
R901312005	4WEH16L7X/6EG48N9K4
R901236174	4WEH16L7X/6EG96N9EK4/10B10
R900760281	4WEH16L7X/6EW100N9DJL
R901016191	4WEH16L7X/6EW100N9ETDJL/B10
R900759009	4WEH16L7X/6EW100N9ETDJL1/B10
R900740265	4WEH16L7X/6EW100N9ETK4
R900767226	4WEH16L7X/6EW100N9ETS2DJL/B10
R901007106	4WEH16L7X/6EW100N9TS2DJL
R901420886	4WEH16L7X/6EW100N9TSDJL
R901008632	4WEH16L7X/6EW100RN9ETSDJL1/B10
R978908123	4WEH16L7X/6EW110N9DA
R978901394	4WEH16L7X/6EW110N9DK25
R978908604	4WEH16L7X/6EW110N9EDAL
R901299483	4WEH16L7X/6EW110N9EDAL/B10
R900940973	4WEH16L7X/6EW110N9EK4
R901251786	4WEH16L7X/6EW110N9EK4/B08D3
R901278720	4WEH16L7X/6EW110N9EK4/B10
R900928743	4WEH16L7X/6EW110N9ES2K4
R901271354	4WEH16L7X/6EW110N9ES2K4/B10
R978914619	4WEH16L7X/6EW110N9ESK4
R978918055	4WEH16L7X/6EW110N9ETDAL
R900938904	4WEH16L7X/6EW110N9ETK4
R900965808	4WEH16L7X/6EW110N9ETK4/B10
R900933555	4WEH16L7X/6EW110N9ETK4/V
R978917094	4WEH16L7X/6EW110N9ETS2K4
R901545659	4WEH16L7X/6EW110N9ETS2K4/B10
R978005041	4WEH16L7X/6EW110N9ETS2K4/V
R901171053	4WEH16L7X/6EW110N9ETSDJL1/B10
R900927337	4WEH16L7X/6EW110N9K4
R983031301	4WEH16L7X/6EW110N9K4IN010
R978909706	4WEH16L7X/6EW110N9TK4
R901027089	4WEH16L7X/6EW110N9TK4
R901285097	4WEH16L7X/6EW110N9TK4/B10
R900777388	4WEH16L7X/6EW110N9TS2K4
R978914608	4WEH16L7X/6EW110N9TS2K4/P4,5
R901292698	4WEH16L7X/6EW110RN5S2DJL
R901290983	4WEH16L7X/6EW110RN5S2DL
R901312920	4WEH16L7X/6EW110RN9ETSDJL/B10
R901213878	4WEH16L7X/6EW200N9DJL
R901185049	4WEH16L7X/6EW200N9ESDJL1/B10
R901358286	4WEH16L7X/6EW200N9ETS2DJL/B10
R900740266	4WEH16L7X/6EW200N9ETSDJL1
R901250771	4WEH16L7X/6EW200N9S2DJL
R900962925	4WEH16L7X/6EW230N9EK4
R900962975	4WEH16L7X/6EW230N9ES2K4/B10
R901222364	4WEH16L7X/6EW230N9ESDL/B10
R900924823	4WEH16L7X/6EW230N9ETK4
R901265945	4WEH16L7X/6EW230N9ETK4/B10
R900702115	4WEH16L7X/6EW230N9ETK4/B10D3
R901372843	4WEH16L7X/6EW230N9ETK4/B10P4,5
R900931047	4WEH16L7X/6EW230N9ETK4/B12
R900932643	4WEH16L7X/6EW230N9ETK4/P4,5
R987009599	4WEH16L7X/6EW230N9ETS2K4
R900933560	4WEH16L7X/6EW230N9ETS2K4/B08
R900948292	4WEH16L7X/6EW230N9ETS2K4/B10
R978033379	4WEH16L7X/6EW230N9ETS2K4/P4,5
R901046421	4WEH16L7X/6EW230N9ETSDL/B10
R900970575	4WEH16L7X/6EW230N9K4
R901142768	4WEH16L7X/6EW230N9K4/B10
R901203053	4WEH16L7X/6EW230N9TS2DJL
R900970154	4WEH16L7X/6EW230NSK4
R901127537	4WEH16L7X/6HG24N9EK4
R901108854	4WEH16L7X/6HG24N9EK4/B10
R901108848	4WEH16L7X/6HG24N9ETK4
R901108814	4WEH16L7X/6HG24N9ETK4/B10
R901108861	4WEH16L7X/6HG24N9K4
R901480134	4WEH16L7X/6HG24N9K4-910
R900769777	4WEH16L7X/6SG24N9EK4/B10
R900734111	4WEH16L7X/6SG24N9ETK4
R900784499	4WEH16L7X/6SG24N9ETK4/B10
R901025267	4WEH16L7X/6SG24N9K4
R900923835	4WEH16L7X/U
R900945176	4WEH16L7X/UET
R900939637	4WEH16L7X=6EG24N9ETK4/B10=KM
R900925115	4WEH16L7X=6EG24N9ETK4=KM
R901367285	4WEH16L7X=6EG24N9K4
R901132239	H-4WEH16L7X/6EG110N9TS2DJL
R901046769	H-4WEH16L7X/6EG24N9EK4/B10D3
R901077622	H-4WEH16L7X/6EG24N9EK4/B10D3ZV
R900977630	H-4WEH16L7X/6EG24N9ES2K4/B10D3
R900956812	H-4WEH16L7X/6EG24N9ETK4/B10D3
R901282894	H-4WEH16L7X/6EG24N9ETK4/B10D3V
R901168115	H-4WEH16L7X/6EG24N9ETS2DJL/B10D3
R901364228	H-4WEH16L7X/6EG24N9ETSK4/B10D3
R900939919	H-4WEH16L7X/6EG24N9K4
R901077620	H-4WEH16L7X/6EG24N9K4/Z
R900784082	H-4WEH16L7X/6EG24N9S2K4
R900729122	H-4WEH16L7X/6EG24N9S2K4/B10D3
R901147679	H-4WEH16L7X/6EG24N9TK4/B10D3
R900943539	H-4WEH16L7X/6EG24N9TSK4
R978022979	H-4WEH16L7X/6EG24NTK4
R900755785	H-4WEH16L7X/6EW100N9ETDJL/B10D3
R901066610	H-4WEH16L7X/6EW100N9ETK4/B10D3
R901080306	H-4WEH16L7X/6EW100N9TS2DJL/B10D3
R900750722	H-4WEH16L7X/6EW100N9TS2K4/B10D3
R901250338	H-4WEH16L7X/6EW110N9EK4/B08D3
R900926338	H-4WEH16L7X/6EW110N9K4
R901095051	H-4WEH16L7X/6EW110N9TS2DJL/B10D3
R900771791	H-4WEH16L7X/6EW110N9TS2K4/B10D3
R901412144	H-4WEH16L7X/6EW200N9S2K4
R901180421	H-4WEH16L7X/6EW230N9K4
R900924008	H-4WEH16L7X/U

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Saar HK Electronic Limited
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

R900952631 4WEH16L7X/6EG24N9ETK4/B10 Rexroth 4WEH16L Directional Spool Valve

R900952631 4WEH16L7X/6EG24N9ETK4/B10 Rexroth 4WEH16L Directional Spool Valve

R900952631 4WEH16L7X/6EG24N9ETK4/B10 Rexroth 4WEH16L Directional Spool Valve

Type code

280 Bar Proportional Directional Valve

Electrical Connection Rexroth Directional Control Valve

Hydraulic Spool Solenoid Directional Valves

R900952631 4WEH16L7X/6EG24N9ETK4/B10 Rexroth 4WEH16L Directional Spool Valve

You May Like

Hydraulic Proportional Directional Valves 4WREE6 / 4WREE10 Series

Rexroth Hydraulic 4WRKE16 Proportional Directional Valve

Pilot Operated Rexroth Hydraulic Valves , 4WRZ16 Proportional Directional Valves

Hydraulic Proportional Directional Valve 4WRKE10 Series

3DR10P Rexroth Hydraulic Valves , Piloted Pressure Reducing Valve


*From:	Your email address is incorrect!
*To:	Saar HK Electronic Limited
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!
