160g 4x4mm Construction Alkali Resistant Fiberglass Mesh Fabric
Fiberglass Mesh Fabric introduction

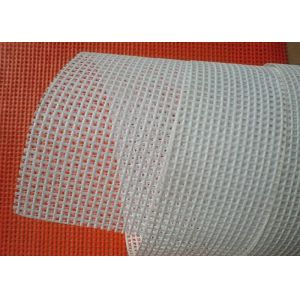

Fiberglass Mesh Fabric is woven with fiberglass yarn as its basis
mesh and then coated by alkaline-resistant latex. It has fine
alkaline-resistant, high strength, etc. As an ideal engineering
material in construction, it is mainly used to reinforce cement,
stone, wall materials, roofing, gypsum, and so on.
Fiberglass Mesh Fabric specification
| No. | Model of Raw Yarn | Mesh(mm) | Mesh(mesh/inch) | Weight(g/m2) | Fracture Strength(N/50MM) |
| Warp | Woof | Warp | Woof | Wrap | Woof | | Warp | Woof |
| 1 | 50 | 204 | 5 | 5 | 5 | 5 | 70± 3 | 700 | 800 |
| 2 | 50 | 306 | 5 | 5 | 5 | 5 | 90± 3 | 700 | 900 |
| 3 | 100 | 330 | 5 | 5 | 5 | 5 | 125± 3 | 1100 | 1300 |
| 4 | 134 | 330 | 5 | 5 | 5 | 5 | 145± 5 | 1500 | 1500 |
| 5 | 134 | 408 | 5 | 5 | 5 | 5 | 160± 5 | 1500 | 1650 |
| 6 | 50 | 204 | 4 | 5 | 5 | 6 | 75± 3 | 750 | 750 |
| 7 | 50 | 255 | 4 | 5 | 5 | 6 | 90± 3 | 750 | 750 |
| 8 | 100 | 255 | 4 | 5 | 5 | 6 | 110± 3 | 1200 | 1100 |
| 9 | 100 | 306 | 4 | 5 | 5 | 6 | 125± 3 | 1200 | 1200 |
| 10 | 134 | 330 | 4 | 5 | 5 | 6 | 145± 5 | 1500 | 1500 |
| 11 | 134 | 380 | 4 | 5 | 5 | 6 | 165± 5 | 1500 | 1500 |
| 12 | 50 | 204 | 4 | 4 | 6 | 6 | 70± 3 | 750 | 750 |
| 13 | 50 | 306 | 4 | 4 | 6 | 6 | 90± 3 | 750 | 850 |
| 14 | 100 | 300 | 4 | 4 | 6 | 6 | 120± 3 | 1200 | 1200 |
| 15 | 134 | 330 | 4 | 4 | 6 | 6 | 150± 5 | 1500 | 1500 |
| 16 | 134 | 350 | 4 | 4 | 6 | 6 | 165± 5 | 1500 | 1500 |
| 19 | 204 | 610 | 12 | 12 | 2 | 2 | 110± 3 | 1000 | 1000 |
Fiberglass Mesh Fabric characteristics
1. Good chemical stability: Alkali-resistant, acid-resistant,
waterproof, cement erosion-resistant, and another chemical
corrosion resistant, and strong resin bonding, soluble in styrene.
2. Outstanding process: Include coating enough alkali-resist glue,
our coating glue is produced by Germany BASF which can keep 60-80%
strength after 28-day immersion of 5% Na(OH) solution, so that
guarantees high strength, high tensility, lightweight.
3. Our fiberglass yarn is supplied by Jushi Group which is the
largest producer of fiberglass yarn in the world like Saint Gobain,
it owns 20% extra strength and beautiful surface than normal
fiberglass yarn!
4. Strength retention rate > 90%, elongation <1%, the
durability of more than 50 years
5. Good dimensional stability, stiffness, smoothness, and
difficulty to shrink, deformation, good positioning properties.
6. Good impact resistance and not easy to be torn.
7. Fire resistant, thermal insulation, sound insulation,
insulations, etc.
Fiberglass Mesh Fabric application
1. Wall reinforced material (such as fiberglass wall mesh, GRC wall
panels, EPS insulation with the wallboard, gypsum board, bitumen
etc)
2. Reinforced cement products.
3. Used for Granite, mosaic, marble back mesh, etc.
4. Waterproof membrane fabric, asphalt roofing.
5. Framework material for reinforced plastics, and rubber products.
6. Fireboard
7. Grinding wheelbase fabric.
8. Road surface with geogrid
9. Construction caulking tape etc.
