ZT-100F-A Heavy Duty 1/2-4" Automatic 1500w Portable Electric Pipe
Threading Machine
Specification
| Product Name | ZT-100F-A Heavy Duty 1/2-4" Automatic 1500w Portable Electric Pipe
Threading Machine |
| Rotational speed of main shaft | 38/22/12 r/min |

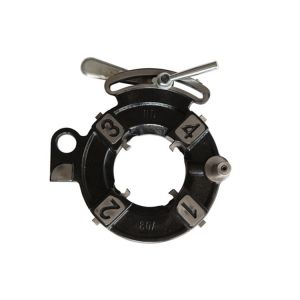

| Model of die head | 100F Multi-Functional Die Head(1/2-2") |
| Swift Open Type Copying Die Head(2(1/2)-4") |
| Scope of application | 1/2-4" |
| Power of motor: | 1500W |
| Gross net weight | 155kg/135kg |
| Packing dimension | 900mm*640mm*680mm |
| Item | pipe threader |
| Key word | automatic needle threader |
Details determine the quality of the product
The pipe threading machine operation process is as follows:
1. Check whether the equipment is installed firmly, whether the
surrounding environment is safe, and whether there is a potential
leakage hazard in the power supply.
2. Clamp the tube, raise the die head and chamfering tool holder to
a safe position, insert the tube forward from the rear chuck to an
appropriate position, and then adjust the clamping.
3. Cut, put down the cutter frame, and start the machine to cut the
end face.
4. Chamfering, chamfering the newly cut section.
5. Threading, check whether the die and installation position are
in line with the size of the pipe, and adjust the scale of the wire
length control panel to the size of the pipe.
6. After the pipe threading work is over, turn off the pipe
threader, cut off the power supply, clean the pipe threader,
arrange the tools and put them back to the designated position.
Application & Details:
Our service:
1. How long is your machine warranty?
Warranty of our product is one year(Artificial damage and incorrect
use is not included), within warranty period ,we will offer free
part and maintain video ,or ever can teach you face-to-face, if
machine have serious quality problem ,we support to back .
2. What is your shipping way ?
Express (DHL, FedEx, TNT), by air, Or Sea. We will choose one
shipping way to suit customer’s request.
