220V Lady Jacket Suit Dress Pressing Machine With Steam Heating
Chamber blazer suit suit press machine
I. Factory information
The company established a production base in Shanghai in 1998, with
more than 22 years of clothing ironing equipment design, research
and development, production experience
Customers are all in China, in Southeast Asia, Europe, America,
Africa and other countries
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development
department, product design department, product sales department,
accounting department and production management department.
Our machine has famous spare part like Mitsubishi, Omron,
SCHNEIDER, FOTEK and so on.
The main products include: 1 - man/lady suit dress ironing
equipment 2 - lady / man shirt ironing equipment 3 - trousers
ironing equipment.
| Model | CPJ | CYAJ |
| Driving mode | Manual | Automatic controller |
| Heating model of upper and lower mould | Steam | Steam heat |
| Driving mode of the mould | Upper mould hand operated
Lower mould foot operated |
Upper mould and lower mould automatic |
| Steam working pressure (Mpa ) | 0.4Mpa to 0.6Mpa | 0.4Mpa to 0.Mpa |
| Steam consumption | 20kg/h | 18-20kg/h |
| Dimension | 1200mm*1200mm*1350mm | 1200mm*1200mm*1650mm |
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time

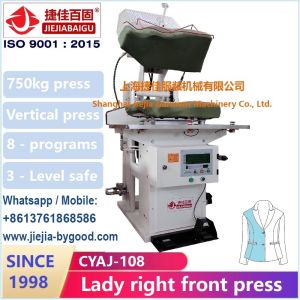

II. Automatic suit jacket press machine (Lady right front press)
| Model | CYAJ-108 lady right front |
| Control | Automatic touch-screen PLC |
| Total pressure | 100 up to 750kg total |
| Steam | 0.4-0.6MPa (max 20kg/h) 1/2” pipe or build-in boiler |
| Compress air | 0.4-0.6MPa (20L/min) 8mm pipe or build-nin compressor |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” pi |
| Drained water | 1/2” |
| Dimension | 1200x1200x1650mm |
| Net weight | 470kg |
III. Feature
Scissors-type close & vertical press
(All buck surface press at same time)
Metal buck is suitable for garment
(customizable)

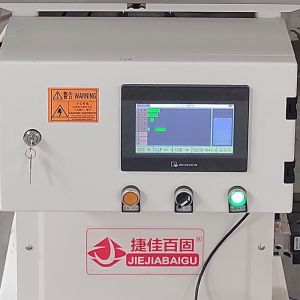

Automatic Touch-screen PLC 7 inch
3 level safety protection device
(input & output signal: easy to check faulty)
180mm length shock absorber (long life)
or pneumatic shock abosorber system
Steam heating system
Top buck steam spray and steam heating
(steam chamber supply much volume)
Bottom buck has vacuum and steam heating
Famous pneumatic parts
stainless steel table board
lady front buck
IV. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CYAJ-107 | Left front press dady | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front press dady | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back press dady | 1200x1200x1650 |
| 4 | CYAJ-123 | Right back press dady | 1200x1200x1650 |
| 5 | CYAJ-126 | Double lapel press dady | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder press dady | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master press dady | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front press dady | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow press dady | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole press dady | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking press dady | 900x1200x1300
|
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery solution
- Pant machinery solution
- Shirt machinery solution
- Jeans machinery solution
- Knitting machinery solution
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam
ironing equipment with vacuum suction
