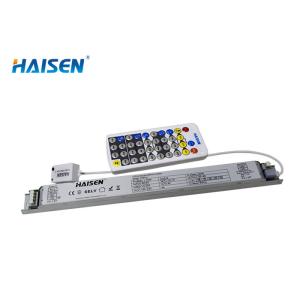

    Dimmable LED Motion Sensor Driver Datachable For Warehouse Lighting

    Ask Lasest Price
    Brand Name : HAISEN
    Model Number : HT57V-I
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100,000pcs per month
    Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk order
    • Product Details
    • Company Profile

    Dimmable LED Motion Sensor Driver Datachable For Warehouse Lighting

    Dimmable LED Motion Sensor Driver Datachable For Warehouse Lighting


    Dimmable Motion Sensor Datachable Design For Warehouse Lighting


    Features:

    • Dimming function and LED driver.
    • Output LED power Max 60W, input power Max 70W.
    • Datached design is workble for tri-proof light, easy installtion.
    • Automatic switching based on motion and ambient light level.
    • Adapted Isolated solution.

    Product Description

    InputMicrowave frequency5.8GHz±75MHz
    Microwave power<0.3mW
    Input voltage120~277VAC 50/60Hz
    Input current0.60A Max
    Input powerMax. 70W
    Sensor ParametersPower factor≥0.9
    Detection angle30°-150°
    Hold time5s/30s/1min/3mib/5min/10min/20min/30min
    Detection area25%/50%/75%/100%
    Efficiency87% (Max.)
    Mounting heightMax.6m/19.68ft
    Detection rangeMax.ø14m/45.92ft
    Empty load voltage≤63V DC
    Daylight threshold2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
    Stand-by period0s/10s/30s/1min/5min/10min/30min/+∞
    Stand-by dimming level10%/20%/30%/50%
    OutputOutput LED powerMax. 60W
    Output LED current1.2A/1.3A/1.4A/1.5A ±5%
    Output LED voltage30-48VDC
    OthersApprovalCE RoHS
    IP ratingIP20
    Life time50000h
    Warranty3 years
    InstallationInstalled inside lamps
    Package requirementBubble pack, paper flat, outer carton
    Operating temperature-20°C~50°C Tc: 80°C
    Abnormal protectionSCP:Auto recovery,OVP,OCP,OTP
    EMC standardEN55015
    Safety standardEN61347-1 EN61347-2-13 EN60598-1
