COMSAT Station Off Grid Hybrid Solar Inverter Automatic Adaptation 3500W 5500W

    Buy cheap COMSAT Station Off Grid Hybrid Solar Inverter Automatic Adaptation 3500W 5500W from wholesalers

    Buy cheap COMSAT Station Off Grid Hybrid Solar Inverter Automatic Adaptation 3500W 5500W from wholesalers
    • Buy cheap COMSAT Station Off Grid Hybrid Solar Inverter Automatic Adaptation 3500W 5500W from wholesalers

    COMSAT Station Off Grid Hybrid Solar Inverter Automatic Adaptation 3500W 5500W

    Ask Lasest Price
    Brand Name : CONSNANT
    Model Number : CNS110
    Certification : CE,ISO9001,ISO14001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 pieces per month
    Delivery Time : 20 days after receiving 30% deposit
    • Product Details
    • Company Profile

    COMSAT Station Off Grid Hybrid Solar Inverter Automatic Adaptation 3500W 5500W

    CNS110 Series Off-grid Inverter

    PERFORMANCE AND FUNCTIONALITY

    Up to 10 units can be Parallelled
    Wide PV input voltage range (120-450VDC)
    It can work normally without a battery

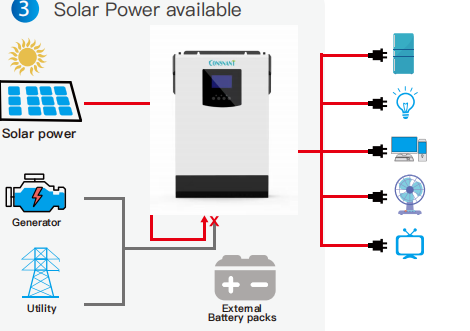

    SCENARIOS
    Mainly used in household solar power generation,
    used to drive household small power load of electrical appliances.
    ModelSC HF 3500-24SC HF 5500-48
    Rated power3500VA/3500W5500VA/5500W
    Input
    Voltage230VAC
    Voltage range170-280VAC(uitable for personal computers)
    90-280VAC(Suitable for household appliances)
    Frequency range50Hz/60Hz(Automatic adaptation)
    Output
    Grid voltage regulation
    (battery mode)
    230VAC±5%
    Surge power6000VA11000VA
    Efficiency>93.6%
    Switch time10ms
    WaveformPure sine wave
    Battery
    Battery voltage24VDC48VDC
    Float charge voltage27VDC54VDC
    Overcharge protection33VDC63VDC
    PV Charge &AC Charge
    PV maximum open
    circuit voltage
    500VDC500VDC
    PV maximum power5500W5500W
    Maximum grid
    charge current
    15A25A
    MPPT operating
    voltage range
    120VDC-450VDC120VDC-450VDC
    PV maximum
    charge current
    25A25A
    Physical properties
    Size300*110*462
    Net weight (kg)910
    Communication interfaceRS232
    Environment
    HumidityRelative humidity (non-condensing)
    Operating temperature-10℃-50℃
    Storage temperature-15℃-60℃
