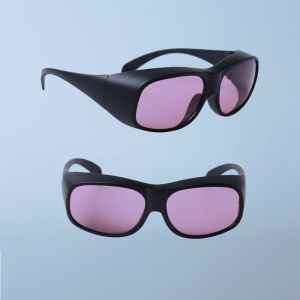

| Model No.: | ATD | Protect Wavelength: | 740-850nm |
|---|
| Transmittance: | 45% | OD Value: | OD5+@740-850nm & OD6+@780-830nm |
|---|
| Material: | Polycarbonate | Suit for: | 755nm, 808nm etc., |
|---|
| Logo: | Customize Logo | Application: | Alexandrite Laser, Diode Laser |
|---|
Choose different laser safety glasses according to different laser
wavelengths and working environments. LaserPair recommends that you
wear laser safety glasses when the laser class is greater than
Class 1.
Advantage:
1. Stable, clear and flexible PVC curved body, fits the face.
2. Factory price.
3. Protects you from particles, dust, or spray.
4. Environmentally Friendly.
Packing Details:
OEM/ODM service is available to us.
Professional gift box.
Our Services:
1. On-time delivery.
2. Superior quality.
3. OEM/ODM warmly welcome.
4. CE appproved.
5. Full protective.
6. Warranty :one year.
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
|
|
|
| IPL | 200 – 1400nm | 10% | IPL Machine | |
|
|
|
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
