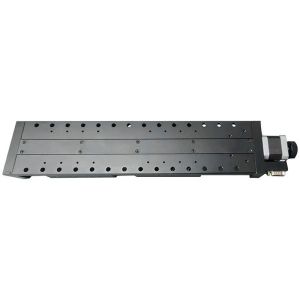

    Double Stage Precision Motorized Linear Stages Electric 50mm Travel

    Ask Lasest Price
    Brand Name : PDV
    Model Number : PTL-S100
    Payment Terms : D/A, D/P, T/T
    Price : Negotiable
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    Double Stage Precision Motorized Linear Stages Electric 50mm Travel

    Electric Double Stage Stretch Displacement Stage , Stretch Stage , Double Slider Platform PTL-S100


    Product features:


    ※ the product structure is small and light, suitable for light load, low-speed use and scientific test.


    ※ high quality fine grinding lead screw drive, small lead, the same fine fraction can achieve high resolution.


    ※ the ingenious structural design of air elimination check nut can minimize the clearance of grinding lead screw pair.


    ※ the guide rail adopts cross roller guide rail, which is comfortable to move. It has the function of laterally adjusting the guide rail preload and eliminating clearance, and can be used in multi-dimensional combination.


    ※ zero and limit switches are installed at both ends to facilitate accurate positioning and protection of products.


    Product parameters:


    Model

    PTL-S100

    Parameter description

    Double table

    90*110

    Direction of motion

    Left and right tensile displacement

    Electric machinery

    42 stepper motor

    Left and right travel

    50mm

    Lead screw

    1.5mm

    Design resolution

    0.125μm

    Motion parallelism

    <15μm

    Repeat positioning accuracy

    <10μm

    Motion straightness

    <12μm

    Limit type

    Hall Sensor

    Top speed

    ≤5mm/sec

    Load

    5kg


    Product dimension drawing:


    The products have high serialization, good stability, strong universality and convenient combination. They are suitable for precision optical experiments, precision positioning and precision processing of all kinds of scientific research and industrial users. The products can still maintain high stability and consistency in complex industrial environment. They are electric translation table products with ultra-high cost performance.
